Manual Air Conditioning & Heater

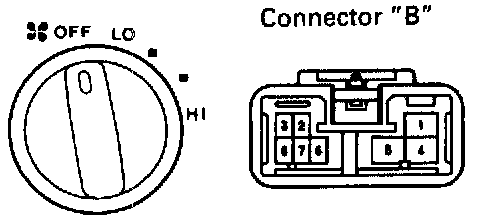

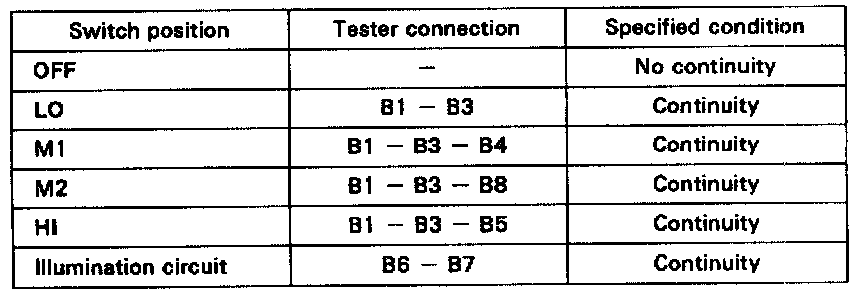

INSPECT BLOWER SPEED CONTROL SWITCH CONTINUITY

If continuity is not as specified. replace the switch.
