Backup Lamp Relay: Testing and Inspection

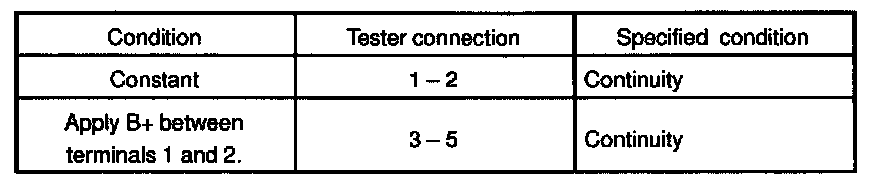

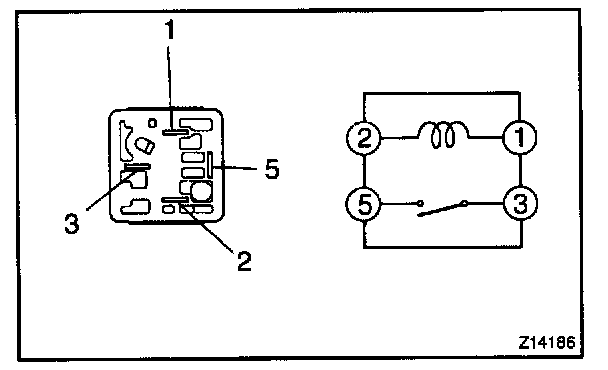

INSPECT BACK-UP LIGHT RELAY CONTINUITY
If continuity is not as specified, replace the relay.
