Sliding Roof Control Relay

INSPECT SLIDING ROOF CONTROL RELAY CIRCUIT

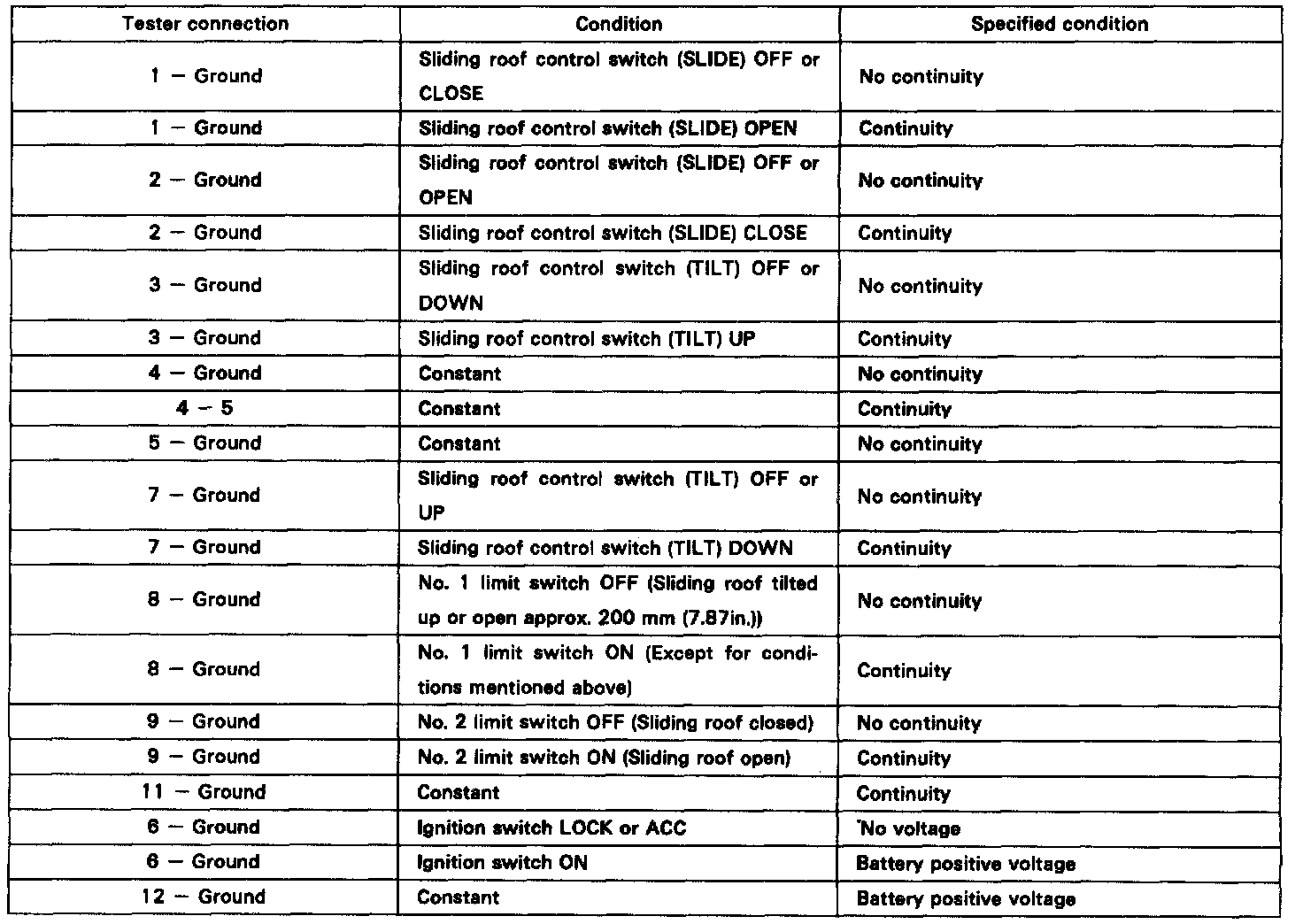

Disconnect the connector from the relay and inspect the connector on the wire harness side, as shown in the chart.







* EXCEPTIONS:
During 60 second after the ignition switch ON -> OFF (ACC) or until driver or passenger door is opened after the ignition switch ON -> OFF (ACC).


If the circuit is as specified, replace the relay.
