Fail Safe Operation

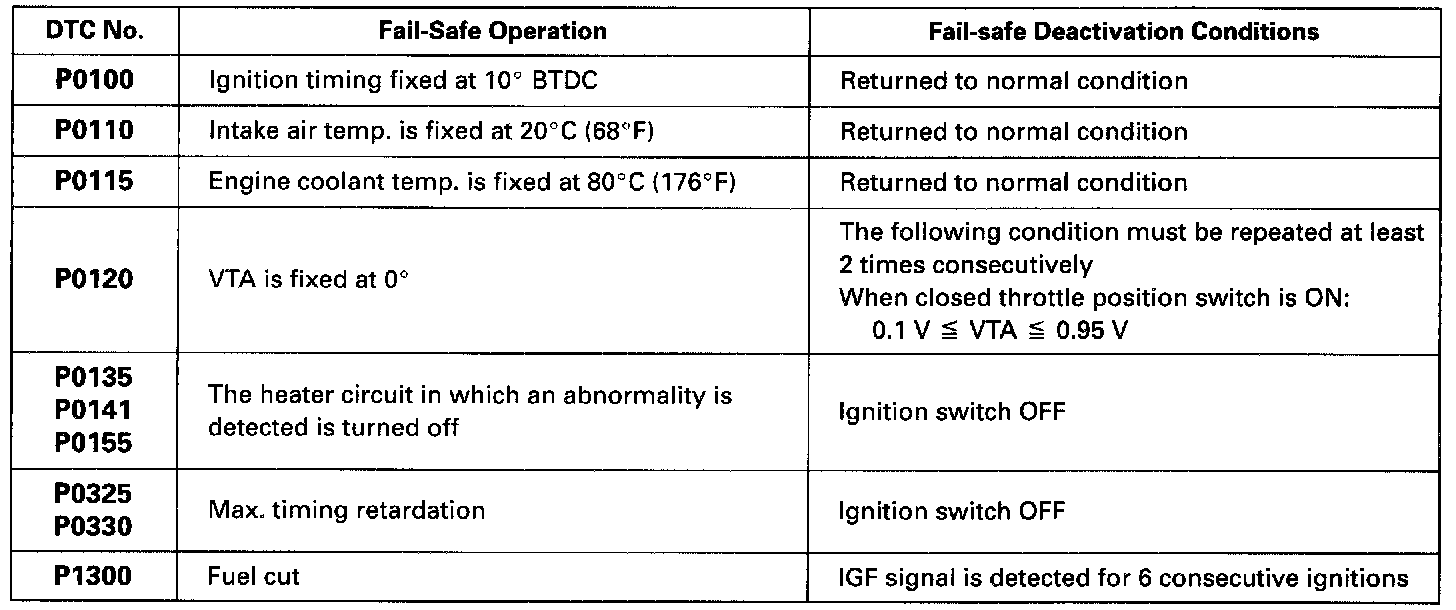

Fail-Safe Chart:
If any of the above codes are recorded, the ECM enters fail-safe mode.
