Home >> Toyota >> 1997 >> Avalon XLS V6-3.0L (1MZ-FE) >> Repair and Diagnosis >> Lighting and Horns >> Trunk Lamp >> Trunk Lamp Switch >> Testing and Inspection

Trunk Lamp Switch: Testing and Inspection

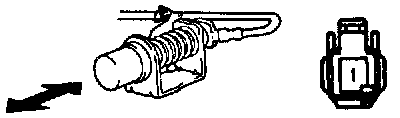

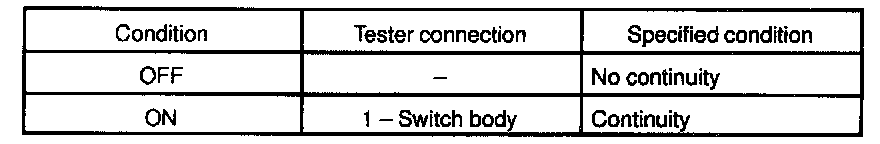

INSPECT LUGGAGE COMPARTMENT DOOR COURTESY SWITCH CONTINUITY







If operation is not as specified, replace the switch.
