Door Outside Handle Switch

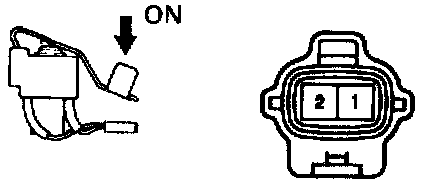

INSPECT DOOR OUTSIDE HANDLE SWITCH CONTINUITY

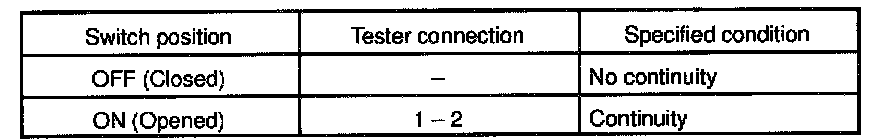

If continuity is not as specified, replace the switch.
