Inspection Flow Charts

DOOR COURTESY SWITCH CIRCUIT


CIRCUIT DESCRIPTION
The door courtesy switch goes ON when the door is opened and goes OFF when the door is closed.

Wiring Diagram:

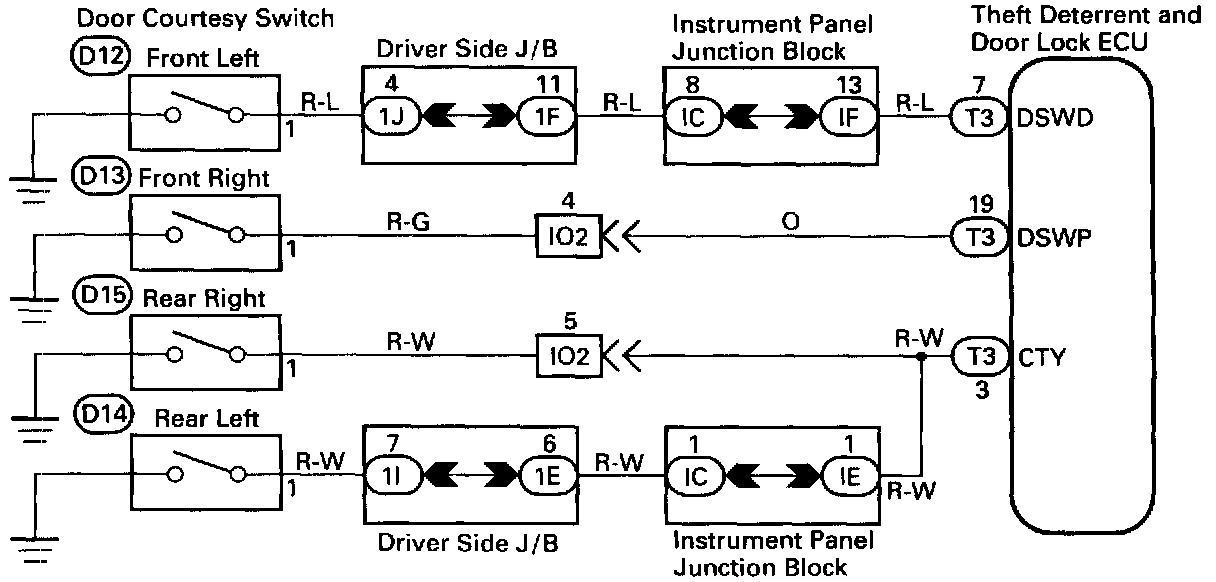

WIRING DIAGRAM

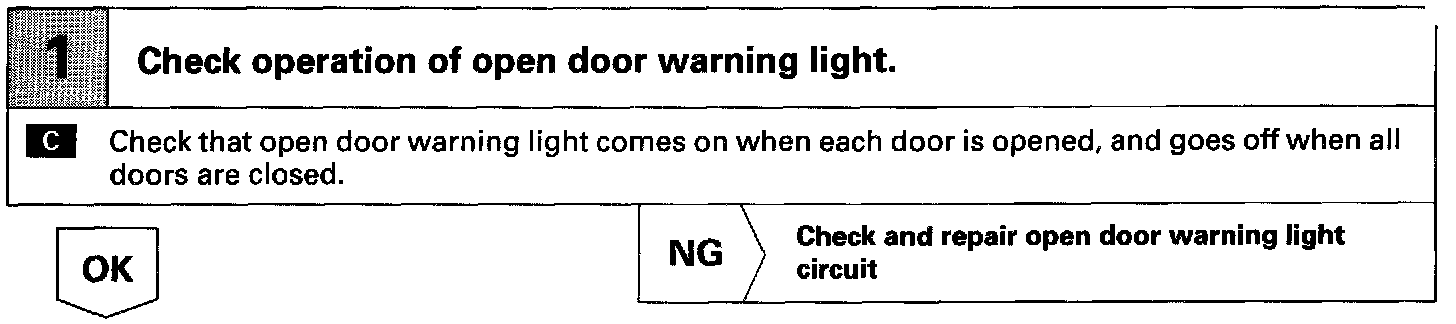

Inspection Procedure / Door Courtesy Switch Circuit (1 Of 2):

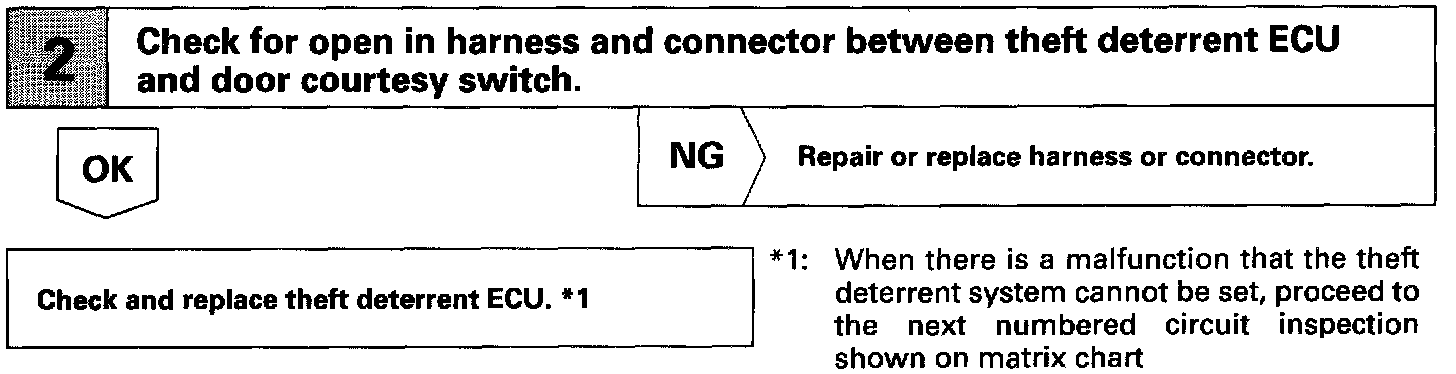

Inspection Procedure / Door Courtesy Switch Circuit (2 Of 2):

INSPECTION PROCEDURE
