Fuel Level Warning Light

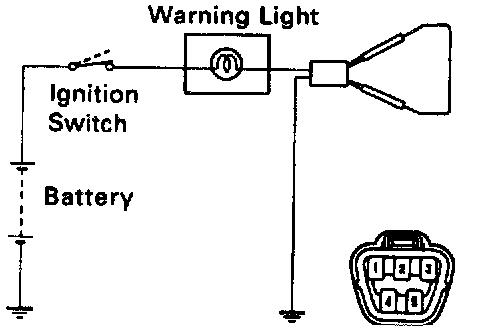

INSPECT FUEL LEVEL WARNING LIGHT
1. Disconnect the connector from the sender gauge.
2. Connect terminals 1 and 3 on the wire harness side connector.







3. Turn the ignition switch ON, check that the warning light lights up.

If the warning light does not light up, test the bulb or inspect wire harness.
