Vacuum Solenoid Valve HVAC: Service and Repair

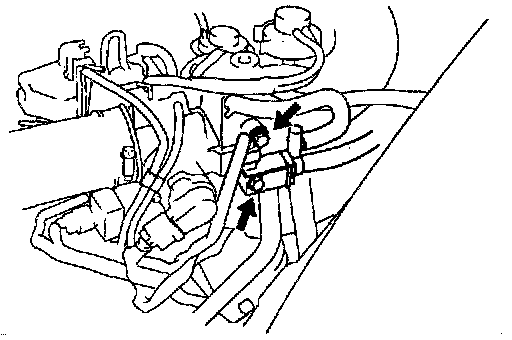

VSV REMOVAL

1. Disconnect the connector.
2. Disconnect the air hoses.







3. Remove the 2 bolts and VSV.

VSV INSTALLATION
Installation is in the reverse order of removal.
