Symptom Related Diagnostic Procedures

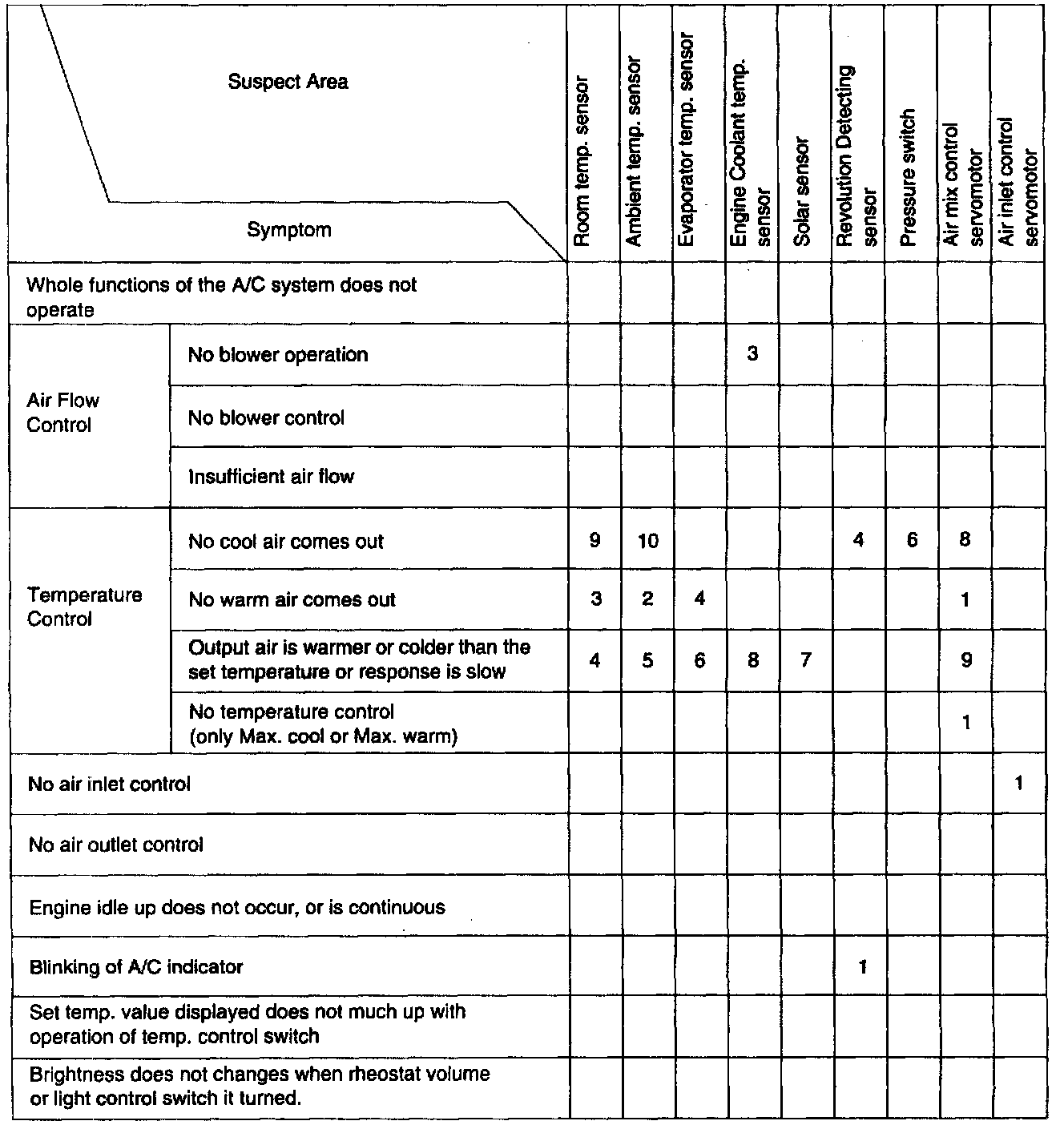

Troubleshooting Heating and Air Conditioning System (1 Of 2):

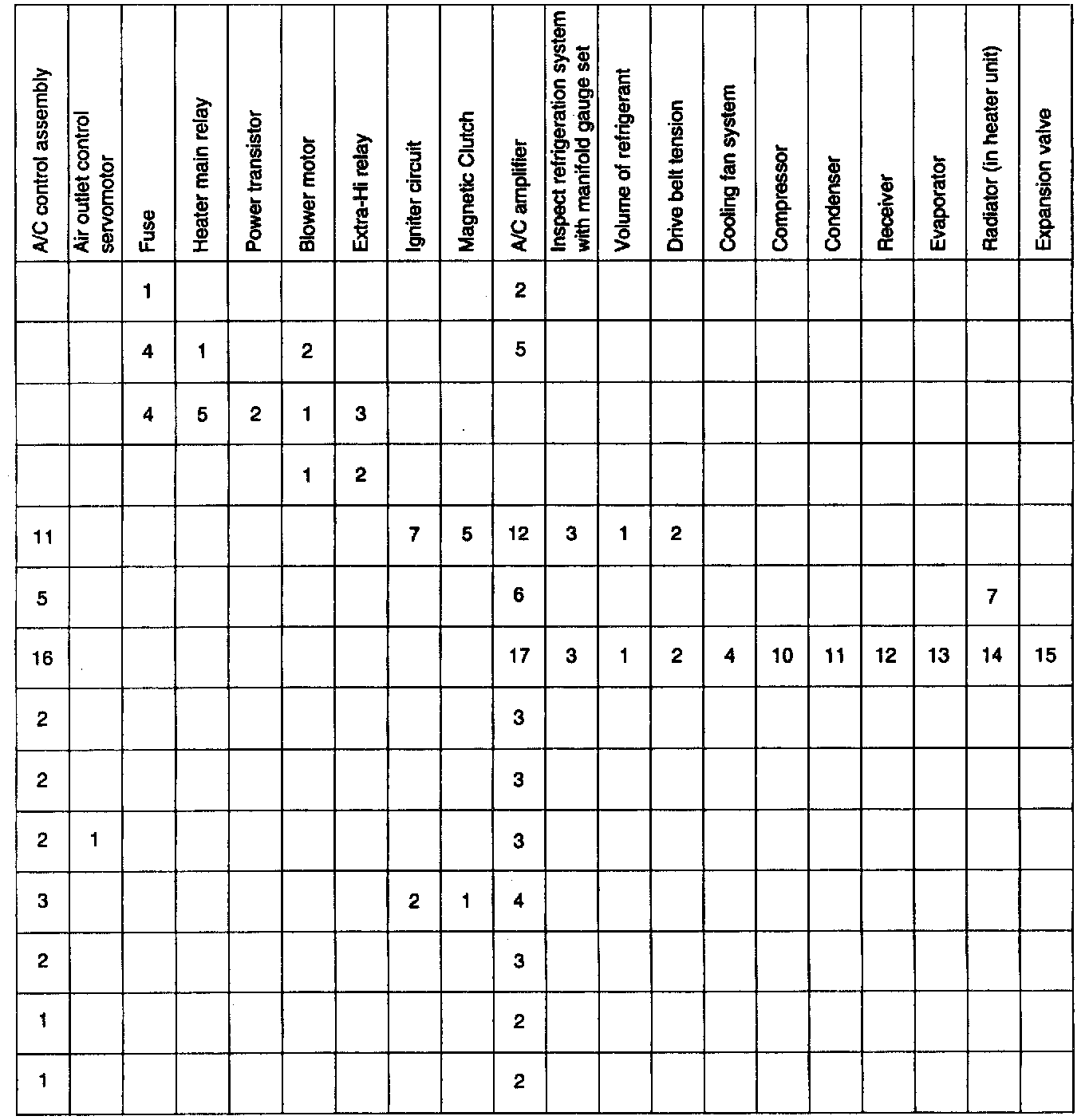

Troubleshooting Heating and Air Conditioning System (2 Of 2):
