Heater Main Relay

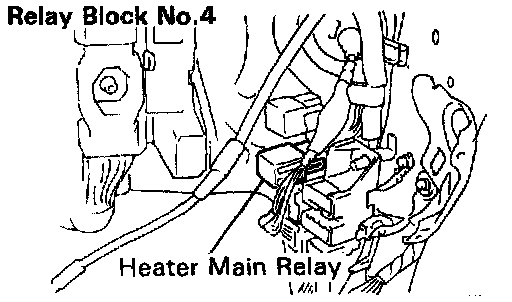

1.
REMOVE RELAY
2.

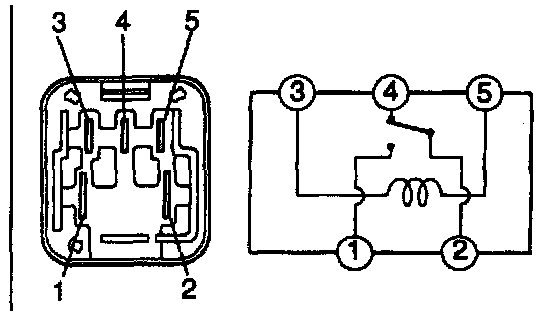

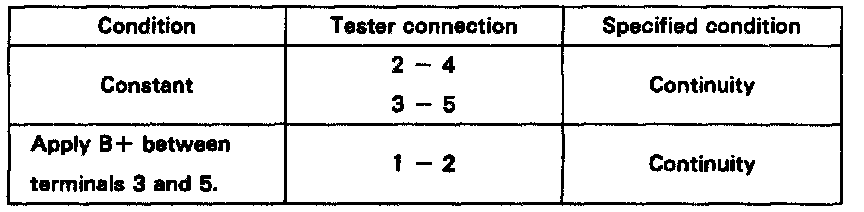

INSPECT HEATER MAIN RELAY CONTINUITY
If continuity is not as specified, replace the relay.
