On Vehicle Inspections

EVAPORATOR TEMPERATURE SENSOR INSPECTION


1. REMOVE GLOVE BOX ASSEMBLY

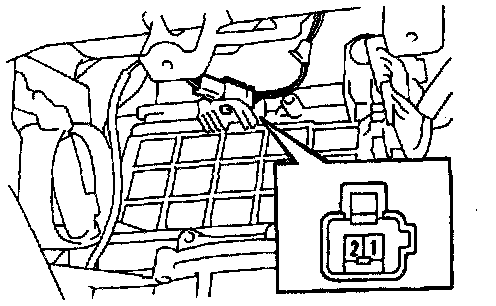

2. INSPECT SENSOR RESISTANCE
Measure resistance between terminals.

Standard resistance:
1,500 Ohms at 25° C (77° F)

If resistance is not as specified, replace the sensor.
