Home >> Toyota >> 1997 >> Avalon XLS V6-3.0L (1MZ-FE) >> Repair and Diagnosis >> Heating and Air Conditioning >> Compressor Clutch Relay >> Testing and Inspection

Compressor Clutch Relay: Testing and Inspection








1. REMOVE RELAY

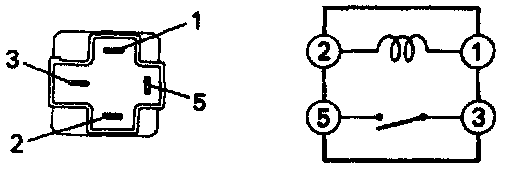

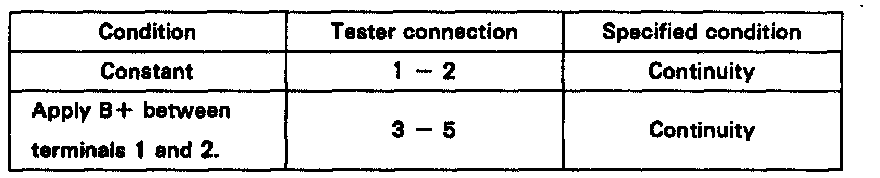

2. INSPECT MAGNETIC CLUTCH RELAY CONTINUITY







If continuity is not as specified, replace the relay.
