Automatic A/C

BLOWER RESISTOR REMOVAL (Automatic A/C)


1. REMOVE LOWER FINISH PLATE

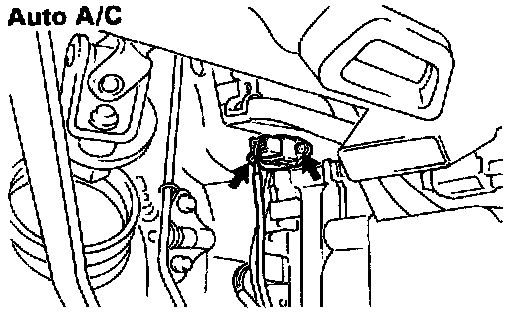

Blower Resistor (Automatic A/C):

2. REMOVE BLOWER RESISTOR
a. Disconnect the connector from blower resistor.
b. Remove the 2 screws and blower resistor.

BLOWER RESISTOR INSTALLATION
Installation is in the reverse order of removal.
