Air Outlet Servomotor

INSPECT AIR OUTLET SERVOMOTOR OPERATION

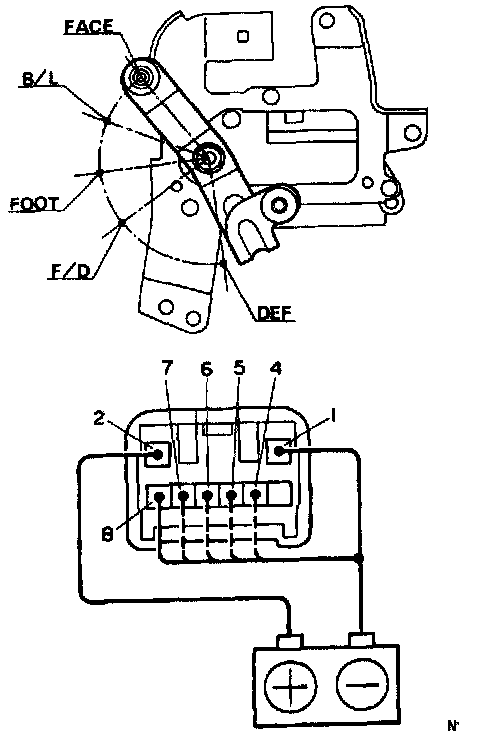

1. Connect the positive (+) lead from the battery to terminal 2 and the negative (-) lead to terminal 1.

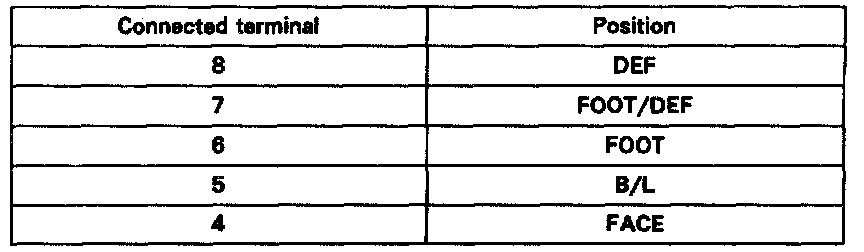

2. Connect the negative (-) lead from the battery to each terminal and check that the arm turns to each position, as shown.

If operation is not as specified, replace the servomotor.
