Air Inlet Servomotor

INSPECT AIR INLET SERVOMOTOR OPERATION

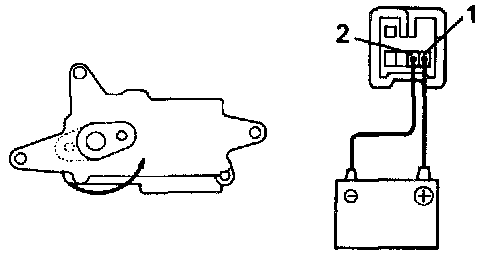

1. Connect the positive (+) lead from the battery to terminal 1 and the negative (-) lead to terminal 2, then check that the arm turns to the "FRESH" side smoothly.

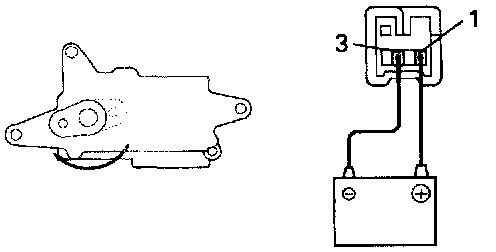

2. Connect the positive (+) lead from the battery to terminal 1 and the negative (-) lead to terminal 3, check that the arm rotates to the "RECIRC" side smoothly.

If operation is not as specified, replace the servomotor.
