Air Outlet Servomotor

AIR OUTLET SERVOMOTOR REMOVAL


1. REMOVE LOWER FINISH PANEL

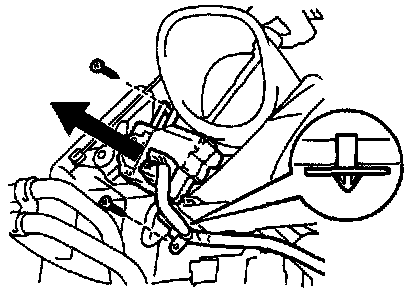

2. REMOVE AIR OUTLET SERVOMOTOR
a. Disconnect the connector.







b. Remove the 3 screws and servomotor.

AIR OUTLET SERVOMOTOR INSTALLATION
Installation is in the reverse order of removal.
