Air Mix Servomotor

AIR MIX SERVOMOTOR REMOVAL (Automatic A/C)


1. REMOVE LOWER FINISH PANEL

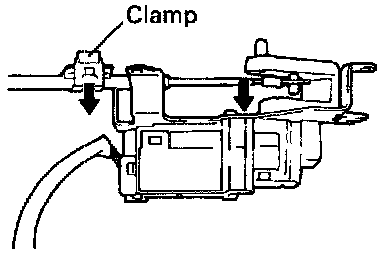

2. REMOVE SERVOMOTOR
a. Disconnect the connector.
b. Remove the 3 screws and the servomotor.
c. Disconnect the water valve control cable.

AIR MIX SERVOMOTOR INSTALLATION
Installation is in the reverse order of removal.
