Oil Level Check

1. The engine oil level should be between the "L" and "F" marks on the dipstick.
If low, check for leakage and add oil up to "F" mark.

CAUTION:
^ Do not fill with engine oil above the "F" mark.

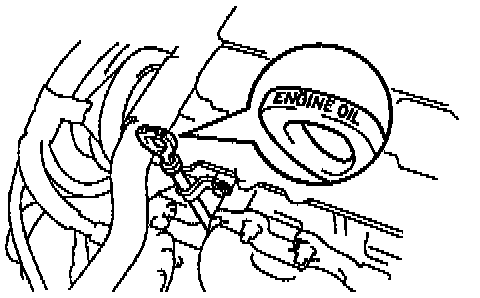

^ The oil dipstick must be inserted so that the portion painted black faces the direction shown in the illustration.
