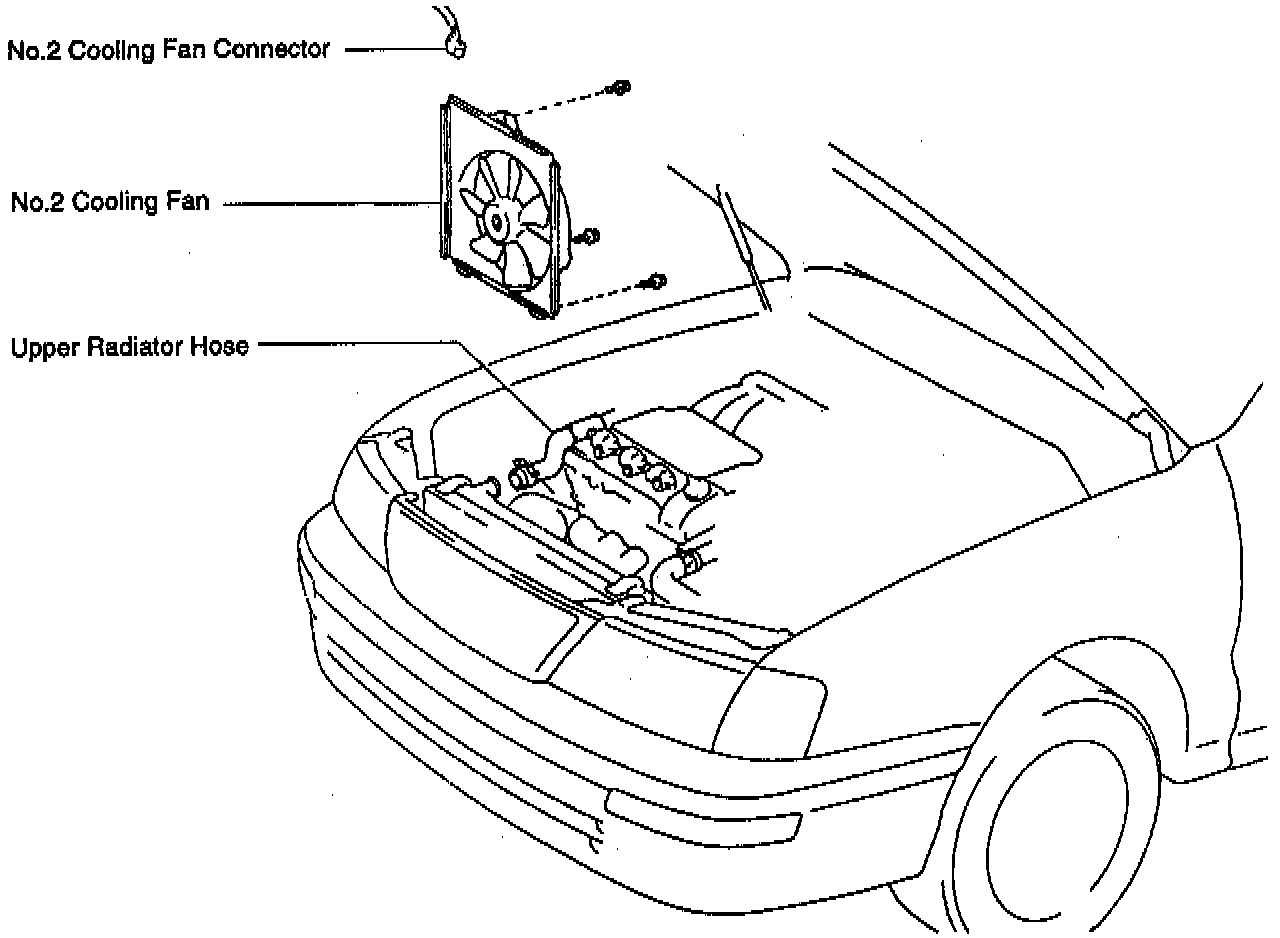

No. 2 Cooling Fan Motor

1. Disconnect the cooling fan connector.

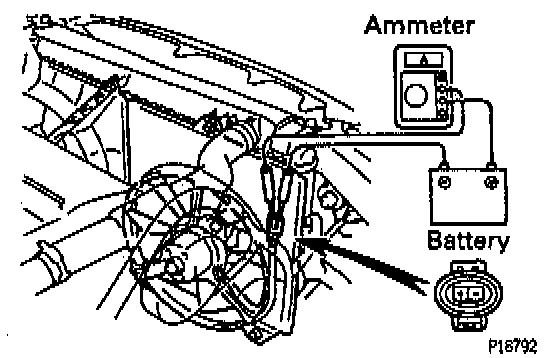

2. Connect battery and ammeter to the cooling fan connector.
3. Check that the cooling fan rotates smoothly, and check the reading on the ammeter.
Standard amperage: 9.2 - 11.0 amps at 20° C (68° F)
4. Reconnect the cooling fan connector.
