HEATER RADIATOR REMOVAL (Automatic A/C)


1. DRAIN ENGINE COOLANT


REMOVAL HINT: It is not necessary to drain out all the coolant.

2. REMOVE INSTRUMENT PANEL AND REINFORCEMENT


3. REMOVE HEATER RADIATOR

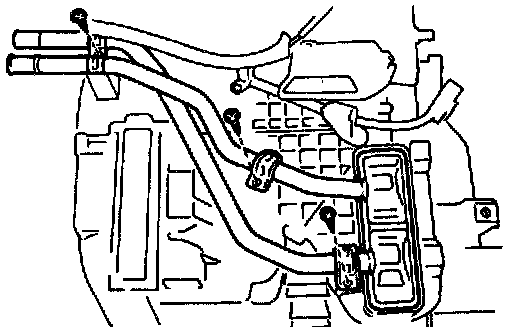

a. Remove the 3 clamps.
b. Disconnect the heater radiator pipe.

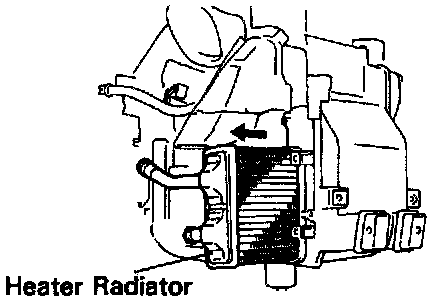

c. Pull out the heater radiator.

HEATER RADIATOR INSTALLATION
Installation is in the reverse order of removal.
