Home >> Toyota >> 1997 >> Avalon XLS V6-3.0L (1MZ-FE) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Power Locks >> Power Door Lock Actuator >> Door Lock Motor Circuit >> Without Theft Deterrent System

Without Theft Deterrent System

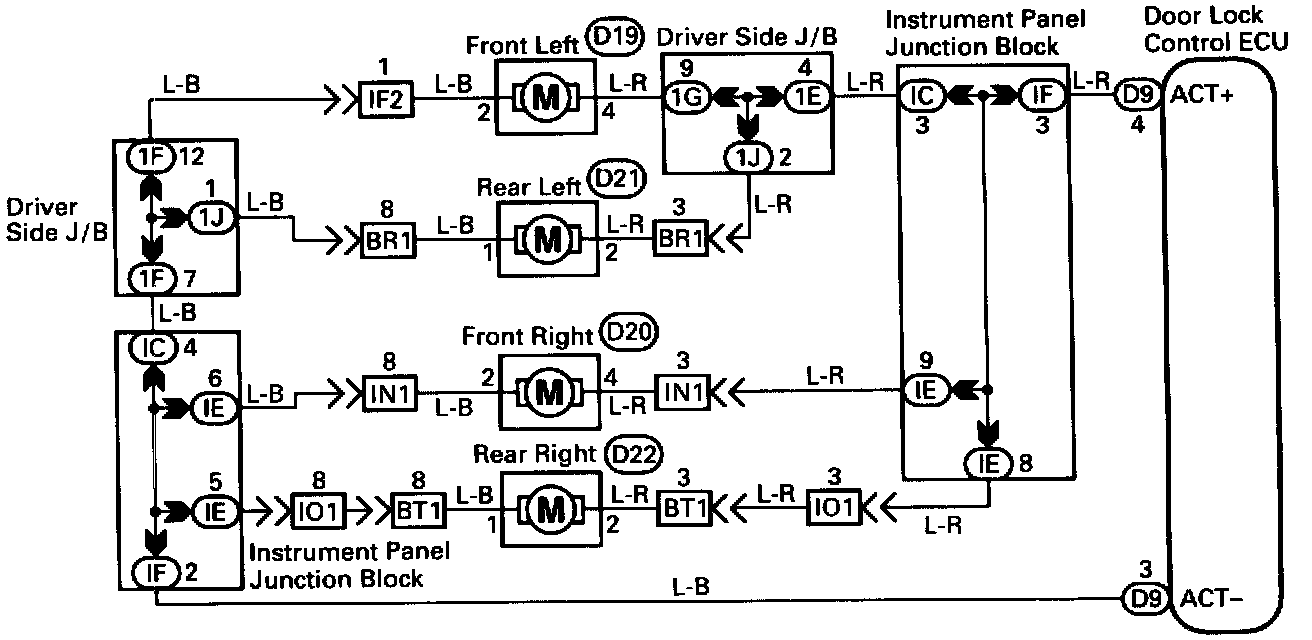

Door Lock Motor Circuit w/o Theft Deterrent System:
