Toyota
>>
1997
>>
Avalon XLS V6-3.0L (1MZ-FE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Instrument Panel, Gauges and Warning Indicators
>>
System Diagram
>>
Combination Meter / Meter Circuit
Combination Meter / Meter Circuit

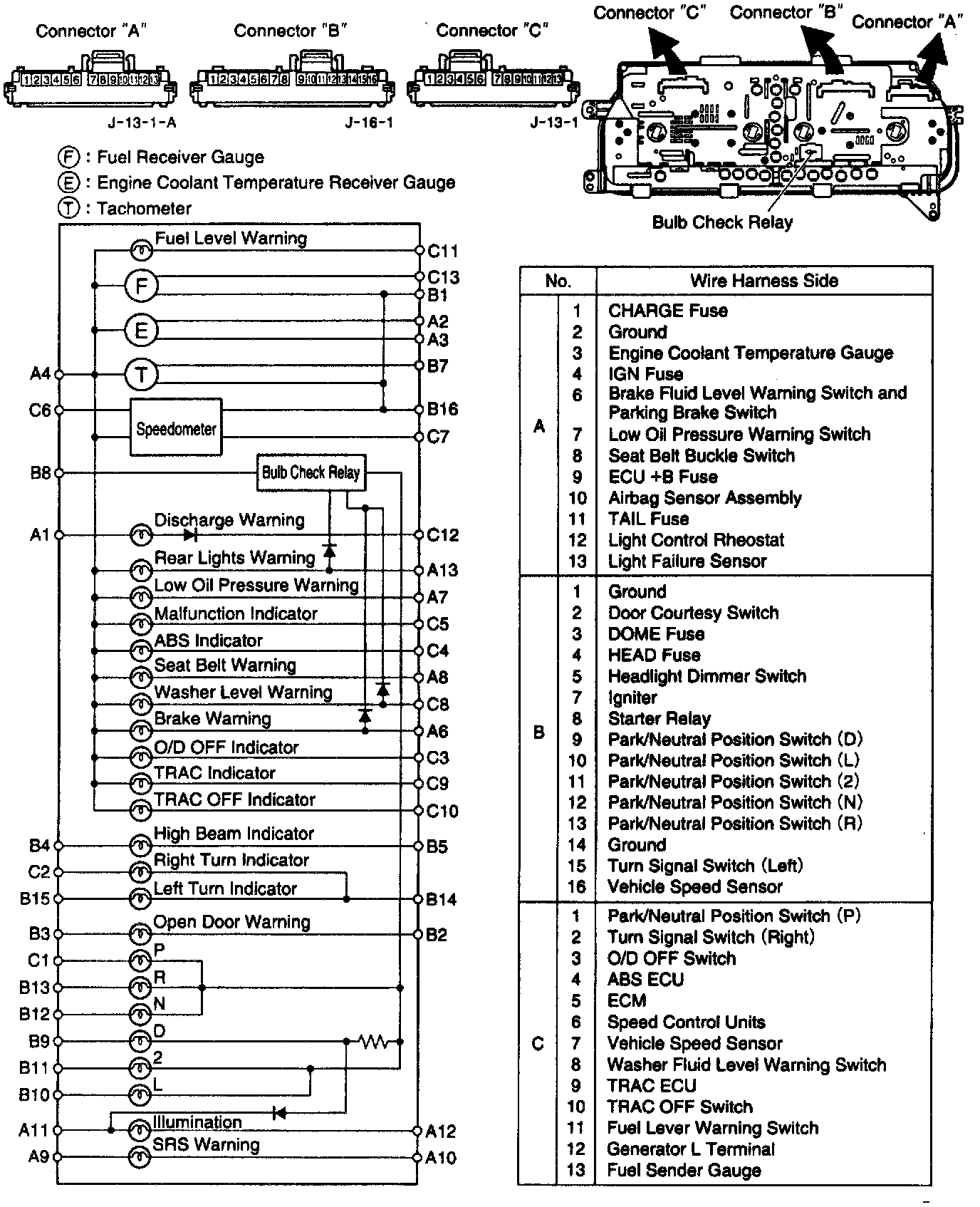

Combination Meter / Meter Circuit (1 Of 2):

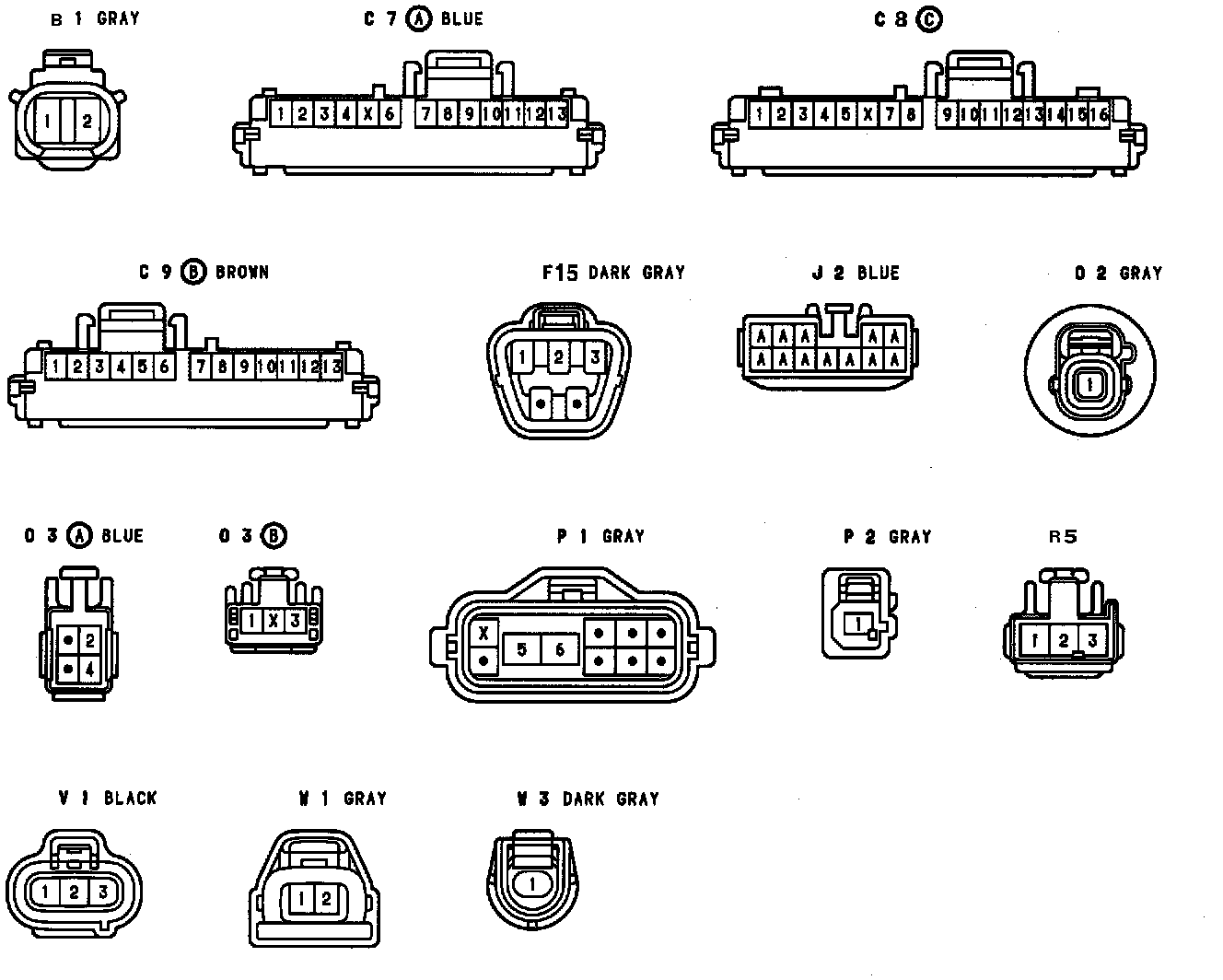

Combination Meter-Connectors:

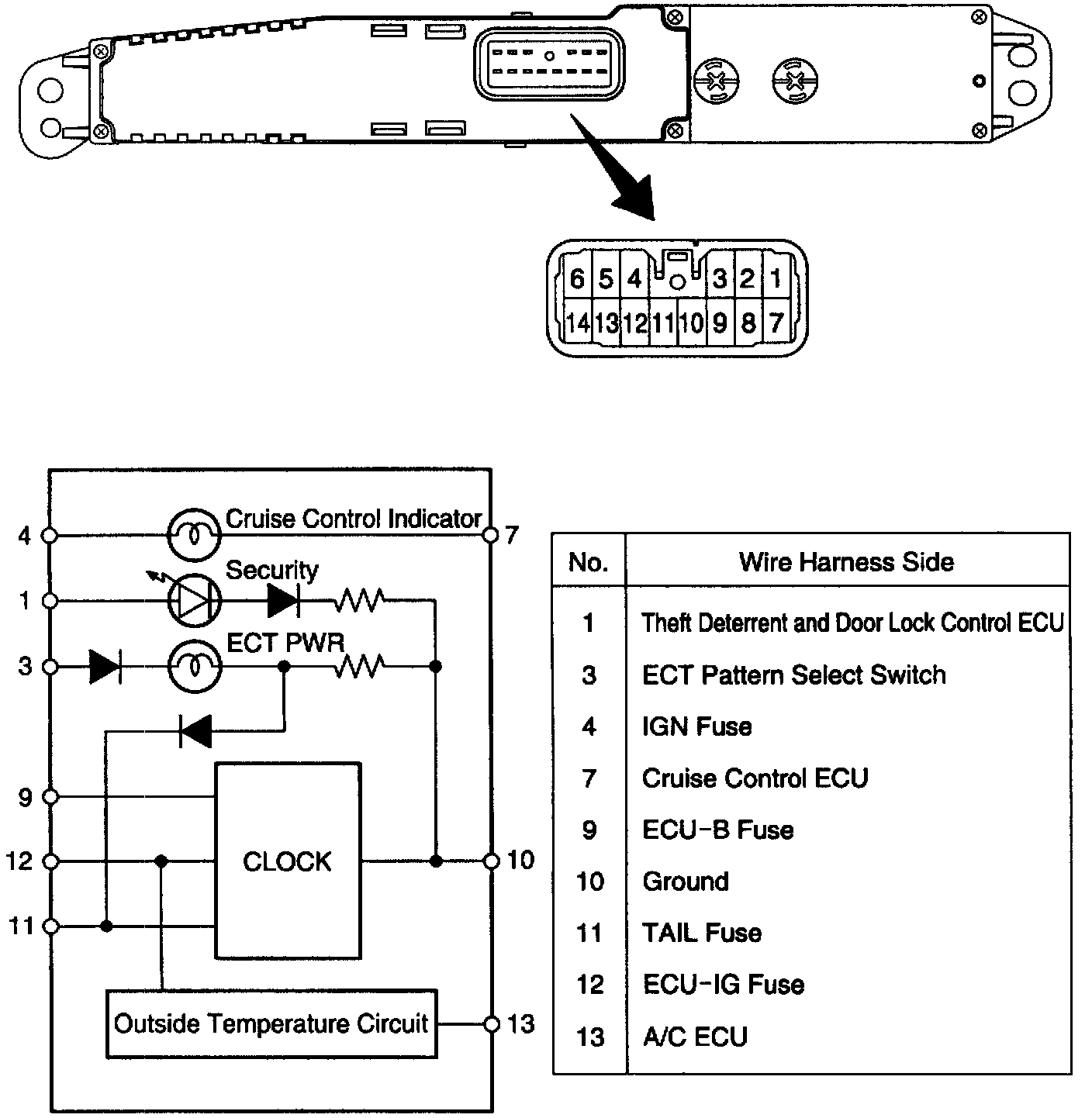

Combination Meter / Meter Circuit (2 Of 2):
