Control Module Pinout Values

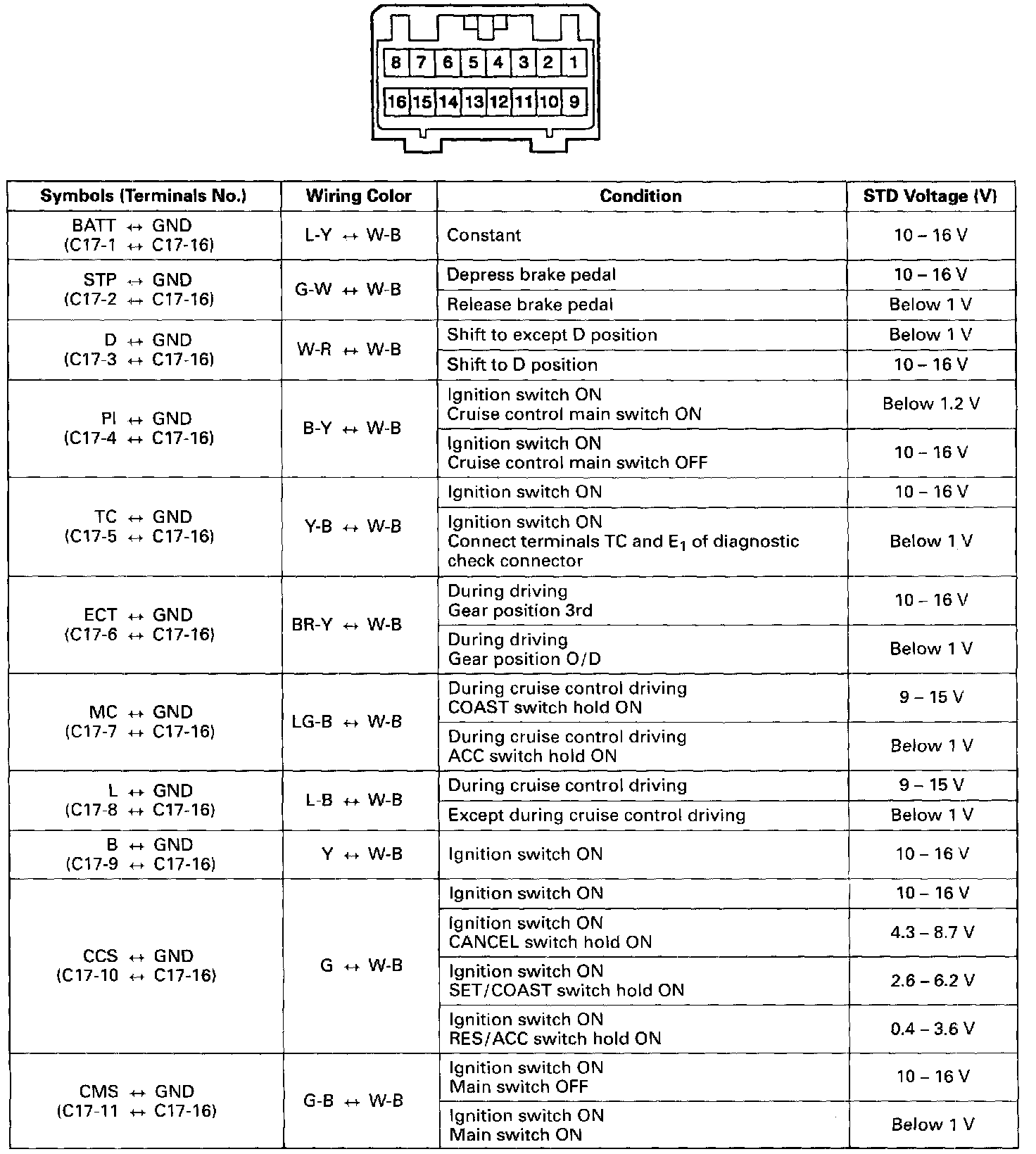

Standard Values of ECU Terminals (1 Of 2):

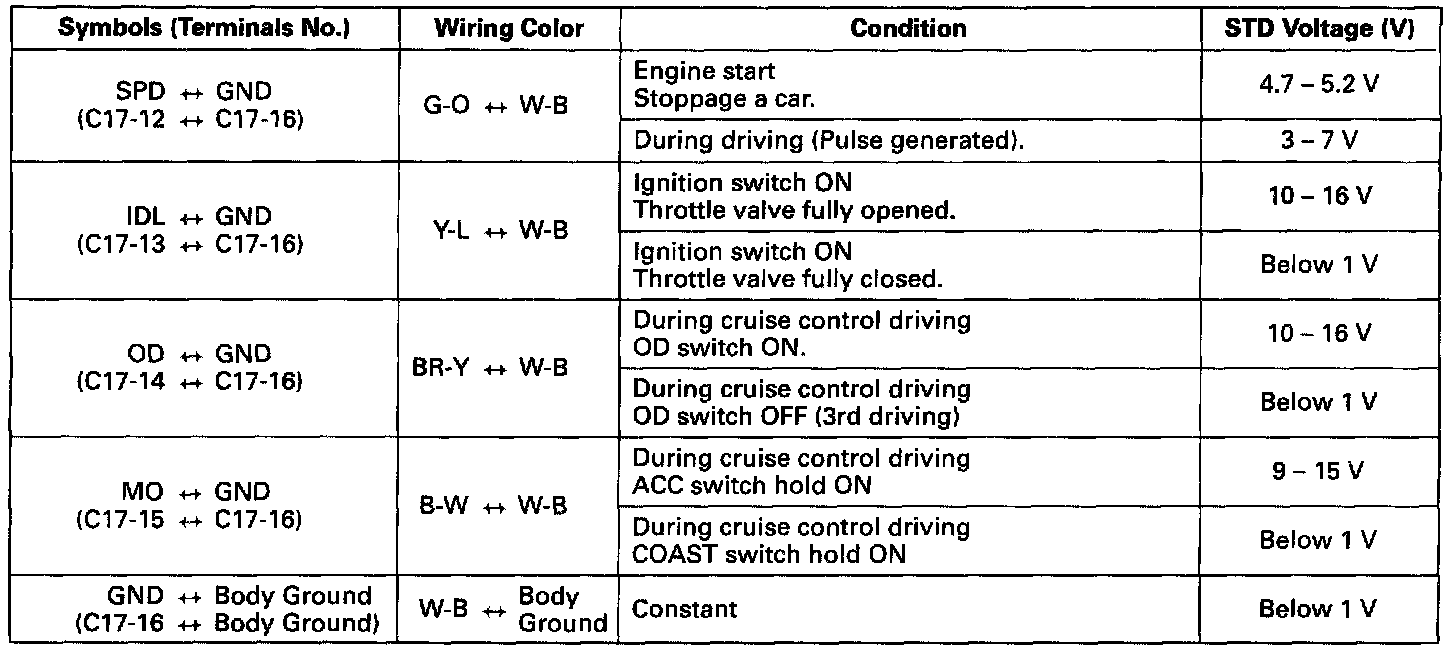

Standard Values of ECU Terminals (2 Of 2):
