Cruise Control
>>
Locations
>>

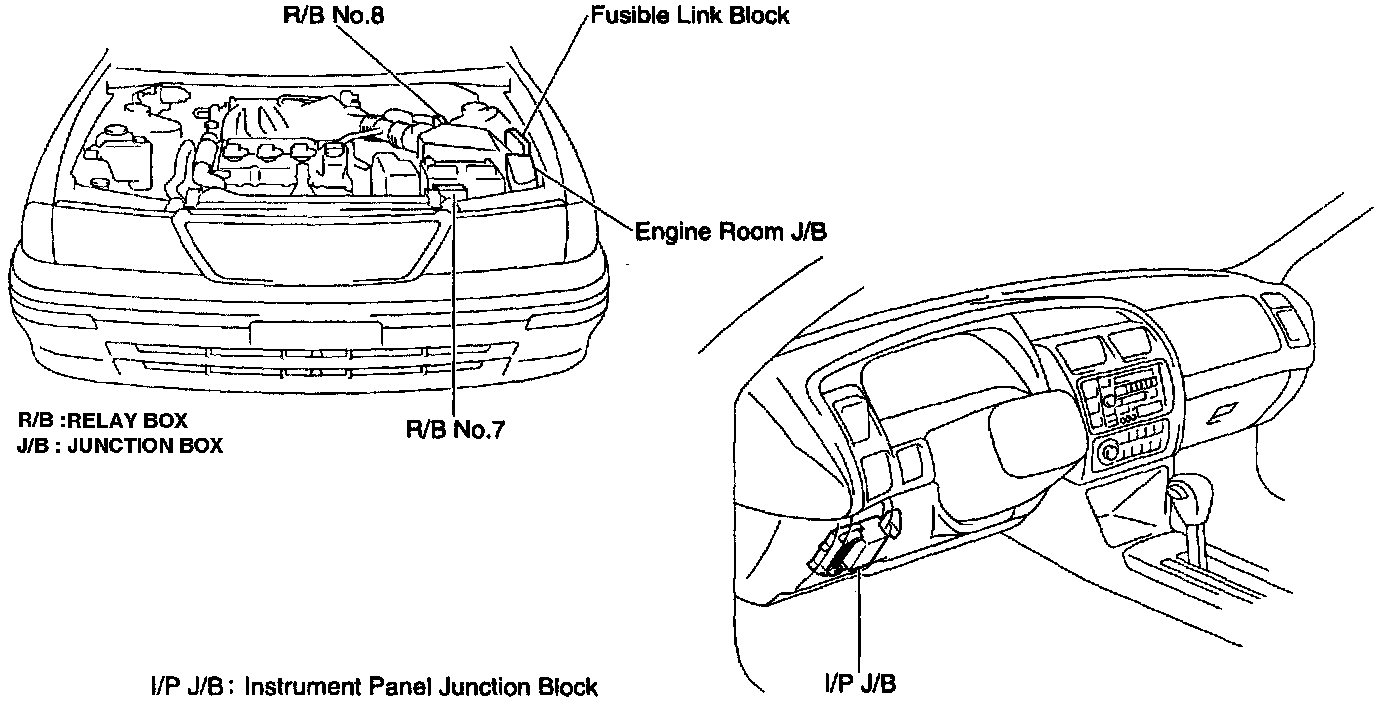

Fuse and Fusible Link Locations
Fuse and Fusible Link Locations
Junction Box / Relay Box:
