Parking Brake Pedal: Testing and Inspection

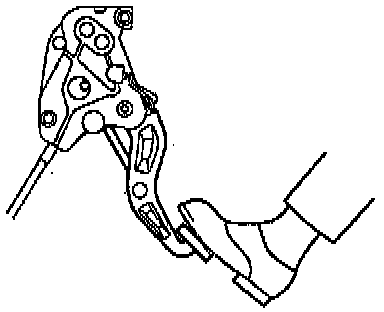

Depressing Parking Brake Pedal:

1. Check Parking Brake Pedal travel.
Slowly depress the Parking Brake Pedal all the way, and count the number of clicks.
Parking Brake Pedal travel at 294 N (66 lbs.) 3-6 clicks.

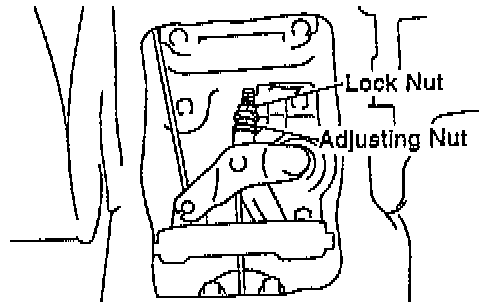

Loosening Lock Nut:

2. If necessary, adjust Parking Brake Pedal travel.
