Power Mirror Switch: Testing and Inspection

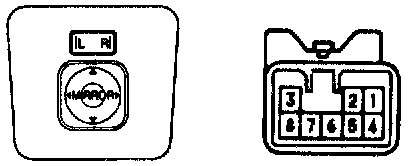

INSPECT MIRROR SWITCH CONTINUITY

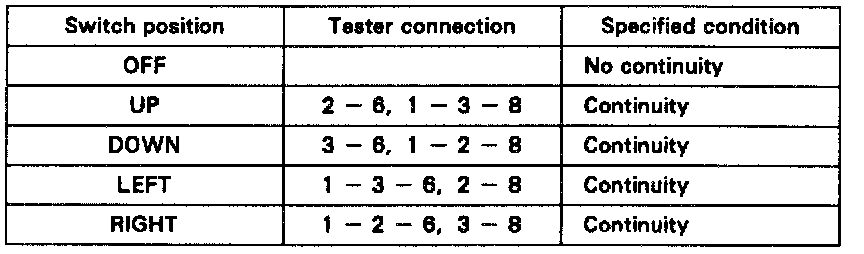

Left Side:

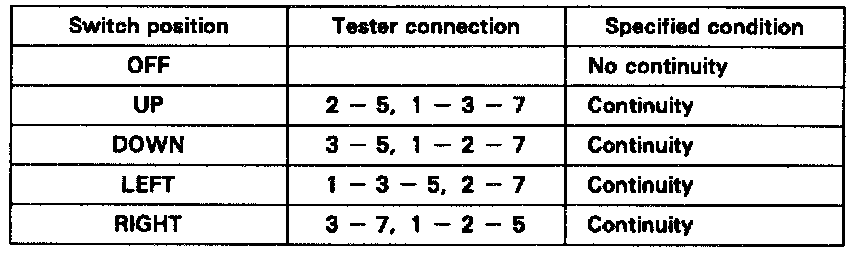

Right Side:
If continuity is not as specified, replace the switch.
