Sunroof / Moonroof Motor: Testing and Inspection

INSPECT SLIDING ROOF MOTOR OPERATION

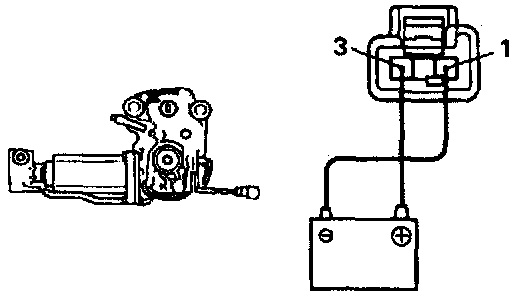

1. Connect the positive (+) lead from the battery to terminal 1 and the negative (-) lead to terminal 3, check that the motor turns to clockwise.

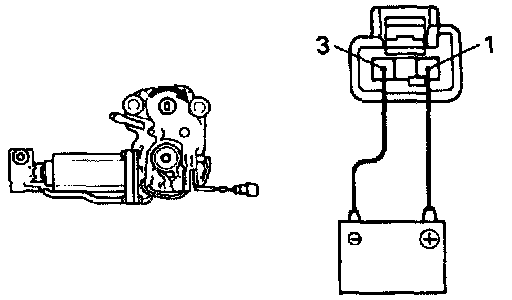

2. Reverse the polarity, check that the motor turns to counterclockwise.

If operation is not as specified, replace the motor.
