Sunroof / Moonroof Circuit Breaker: Testing and Inspection

INSPECT CIRCUIT BREAKER OPERATION

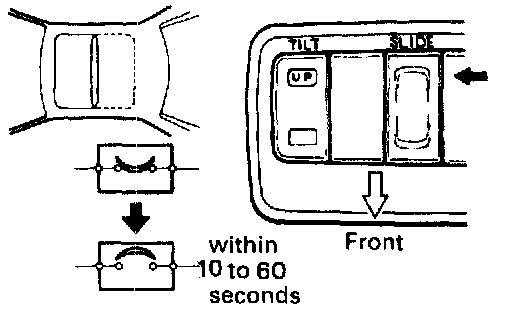

1. With the sliding roof in the fully opened position, hold the sliding roof switch in OPEN position and check that there is a circuit breaker operation noise within 10 to 60 seconds.

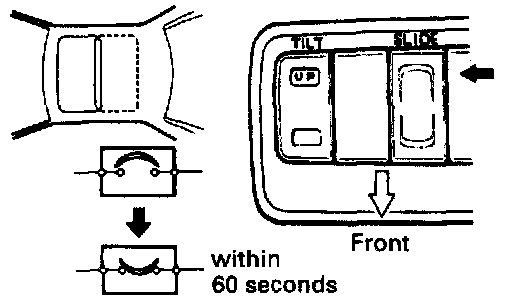

2. With the sliding roof in the fully opened position, hold the sliding roof switch in CLOSE position and check that the sliding roof begins to close within 60 seconds.

If operation is not as specified, replace the motor.
