Home >> Toyota >> 1997 >> Avalon XLS V6-3.0L (1MZ-FE) >> Repair and Diagnosis >> Accessories and Optional Equipment >> Radio, Stereo, and Compact Disc >> Testing and Inspection >> Symtom Based Diagnostic Charts >> Radio >> #5 Woofer Speaker Does Not Work

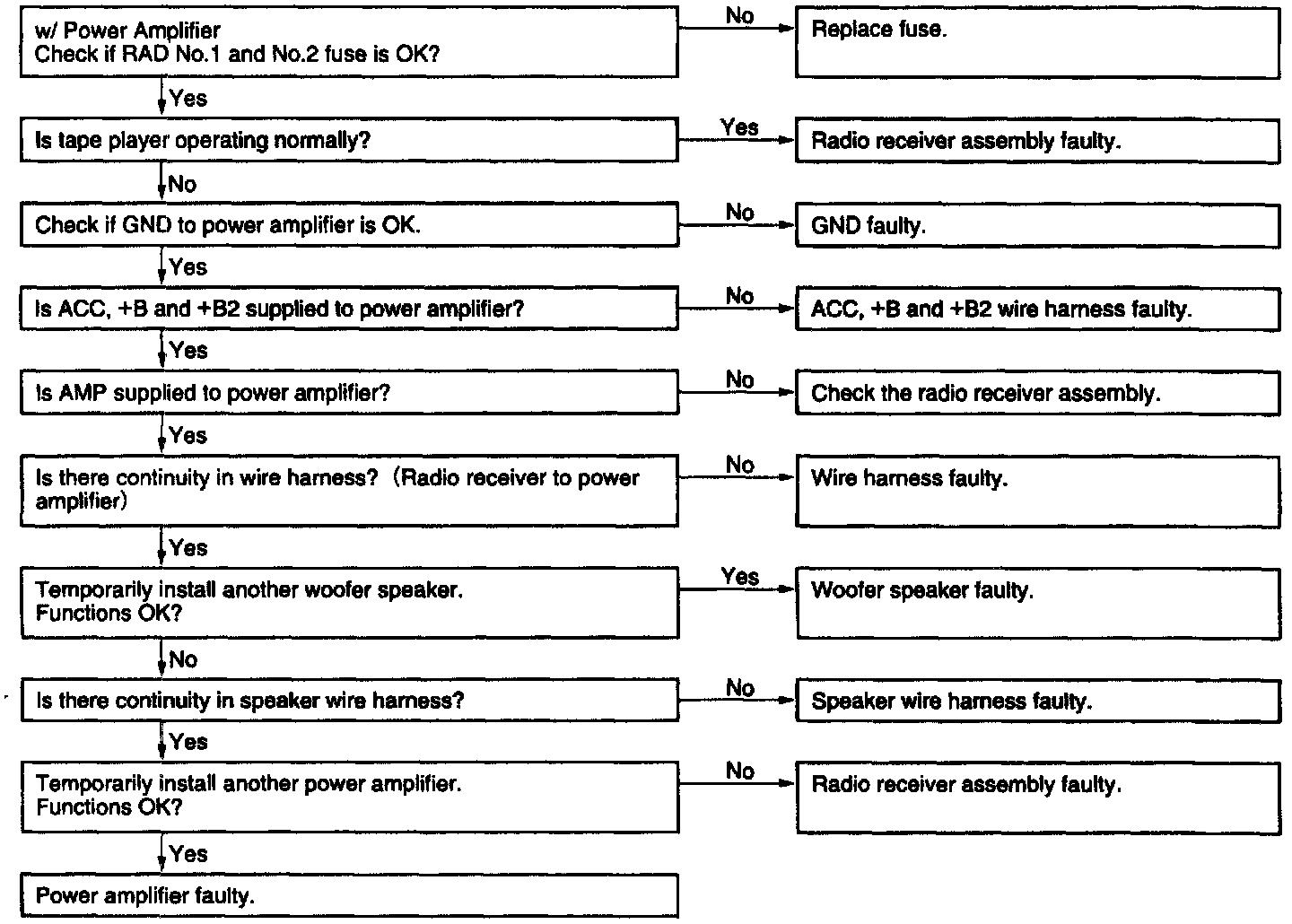

#5 Woofer Speaker Does Not Work

#5 Woofer Speaker Does Not Work:
