Home >> Toyota >> 1997 >> Avalon XLS V6-3.0L (1MZ-FE) >> Repair and Diagnosis >> Accessories and Optional Equipment >> Radio, Stereo, and Compact Disc >> Testing and Inspection >> Symtom Based Diagnostic Charts >> Radio >> #2 Power Coming In, But Radio Not Operating

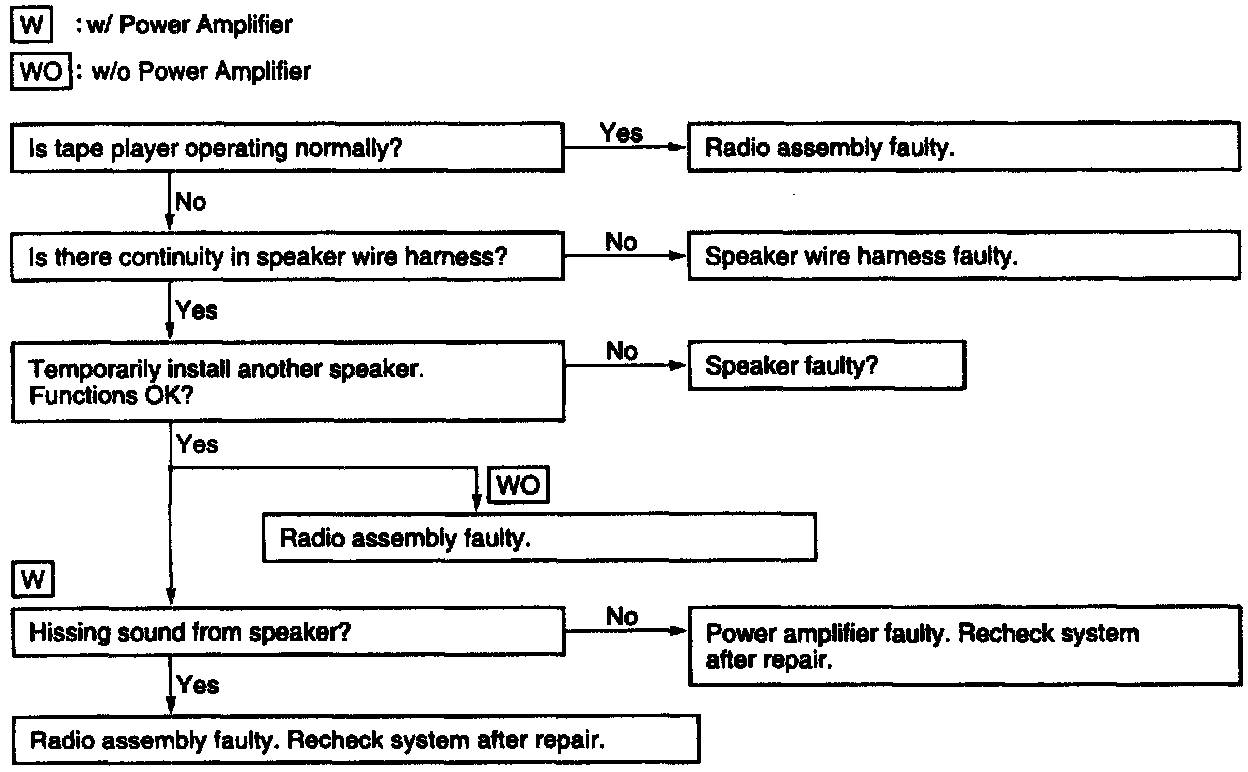

#2 Power Coming In, But Radio Not Operating

#2 Power Coming In, But Radio Not Operating:
