Standard Values of ECU Terminals
Standard Values of ECU Terminals

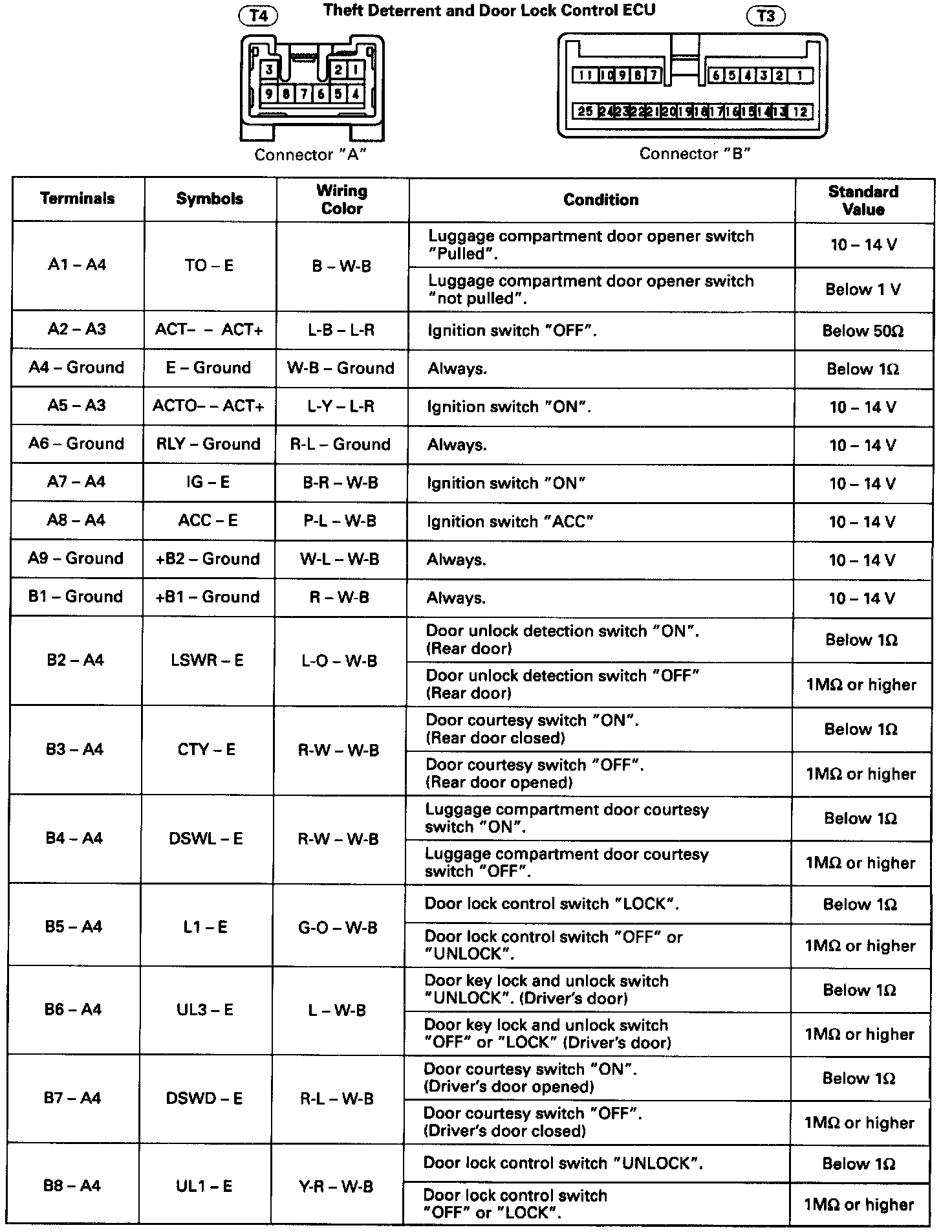

Theft Deterrent System / Standard Values of ECU Terminals (1 Of 2):

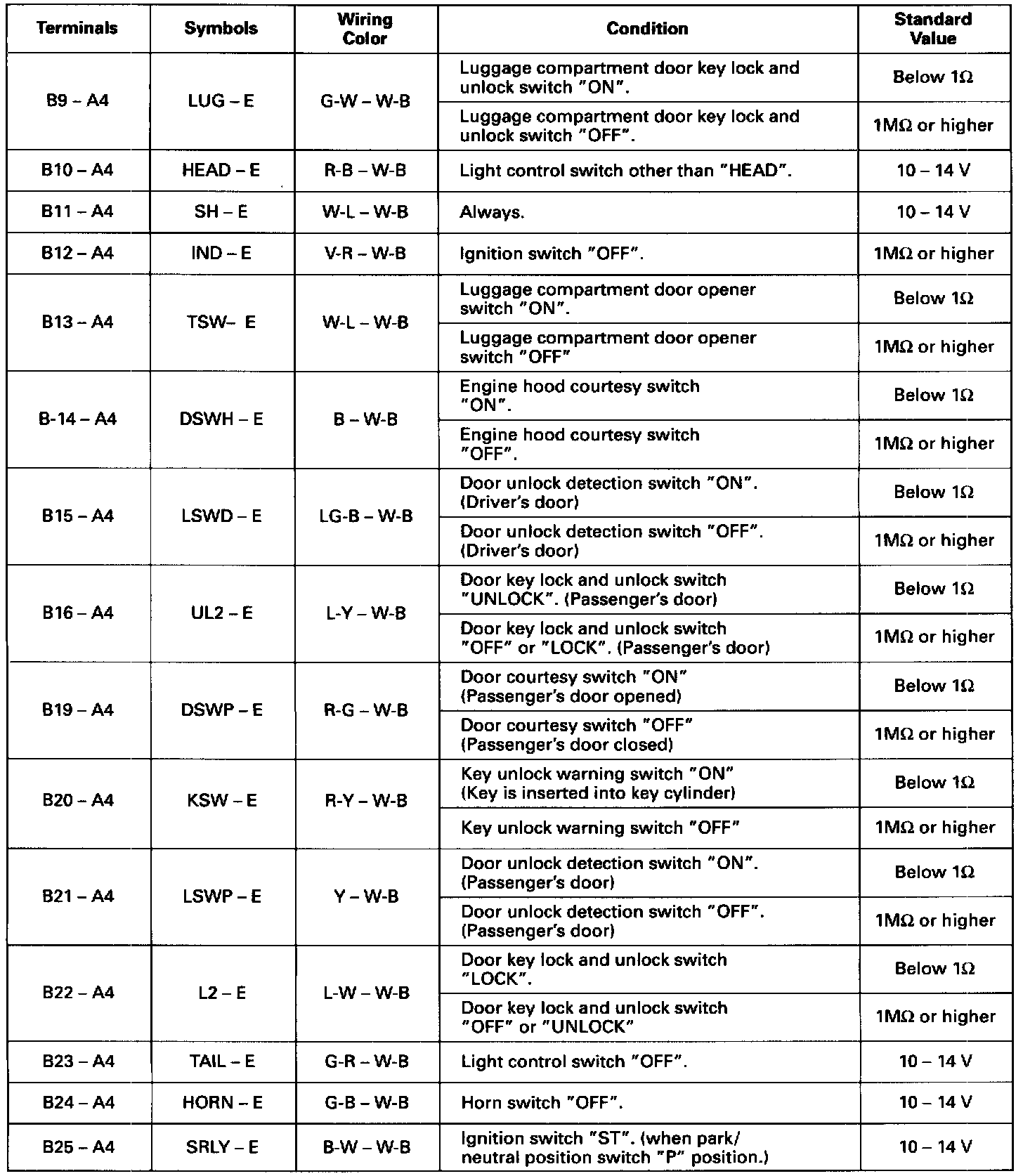

Theft Deterrent System / Standard Values of ECU Terminals (2 Of 2):
