TT Terminal Circuit


TT Terminal Circuit

CIRCUIT DESCRIPTION
Checks of ECM input and output signals related to the throttle position sensor, brakes, shift position and other circuits can be performed by measuring the voltages at terminal TT of the DLC2.

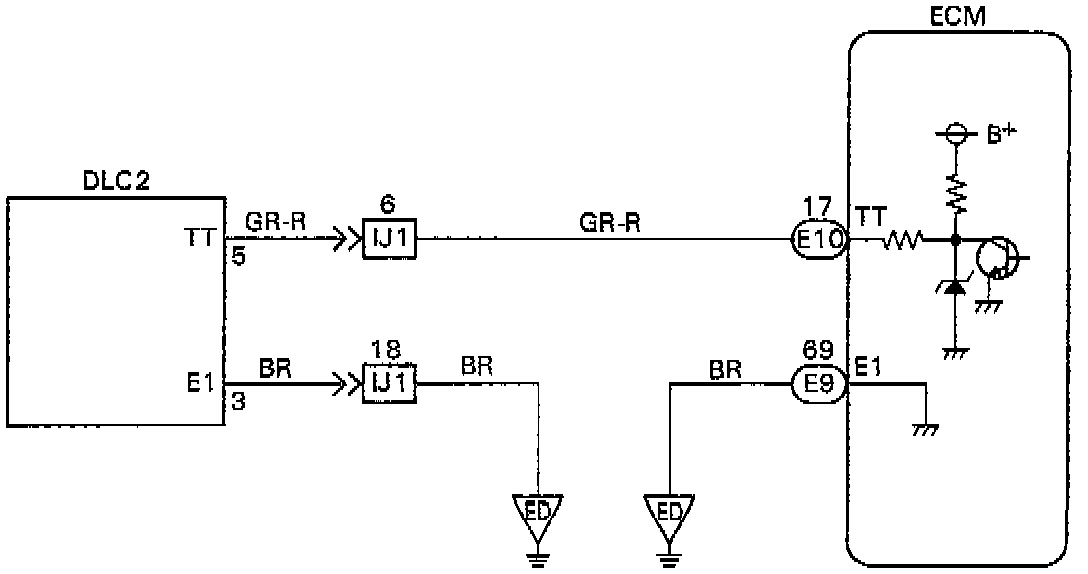

WIRING DIAGRAM

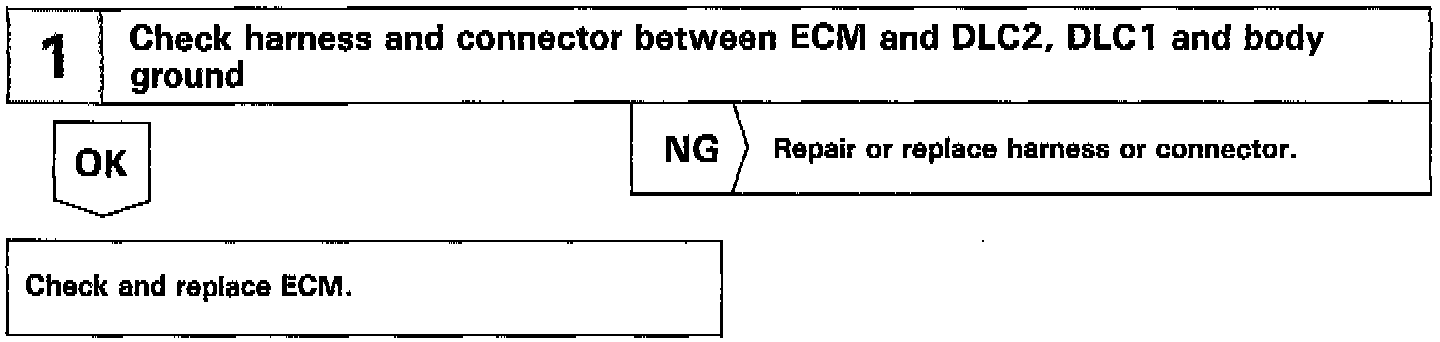

INSPECTION PROCEDURE
