Home >> Toyota >> 1996 >> Supra L6-183 2997cc 3.0L DOHC Turbo (2JZ-GTE) >> Repair and Diagnosis >> Transmission and Drivetrain >> Drive Axles, Bearings and Joints >> Tools and Equipment >> Rear Axle >> Special Service Tools

Special Service Tools

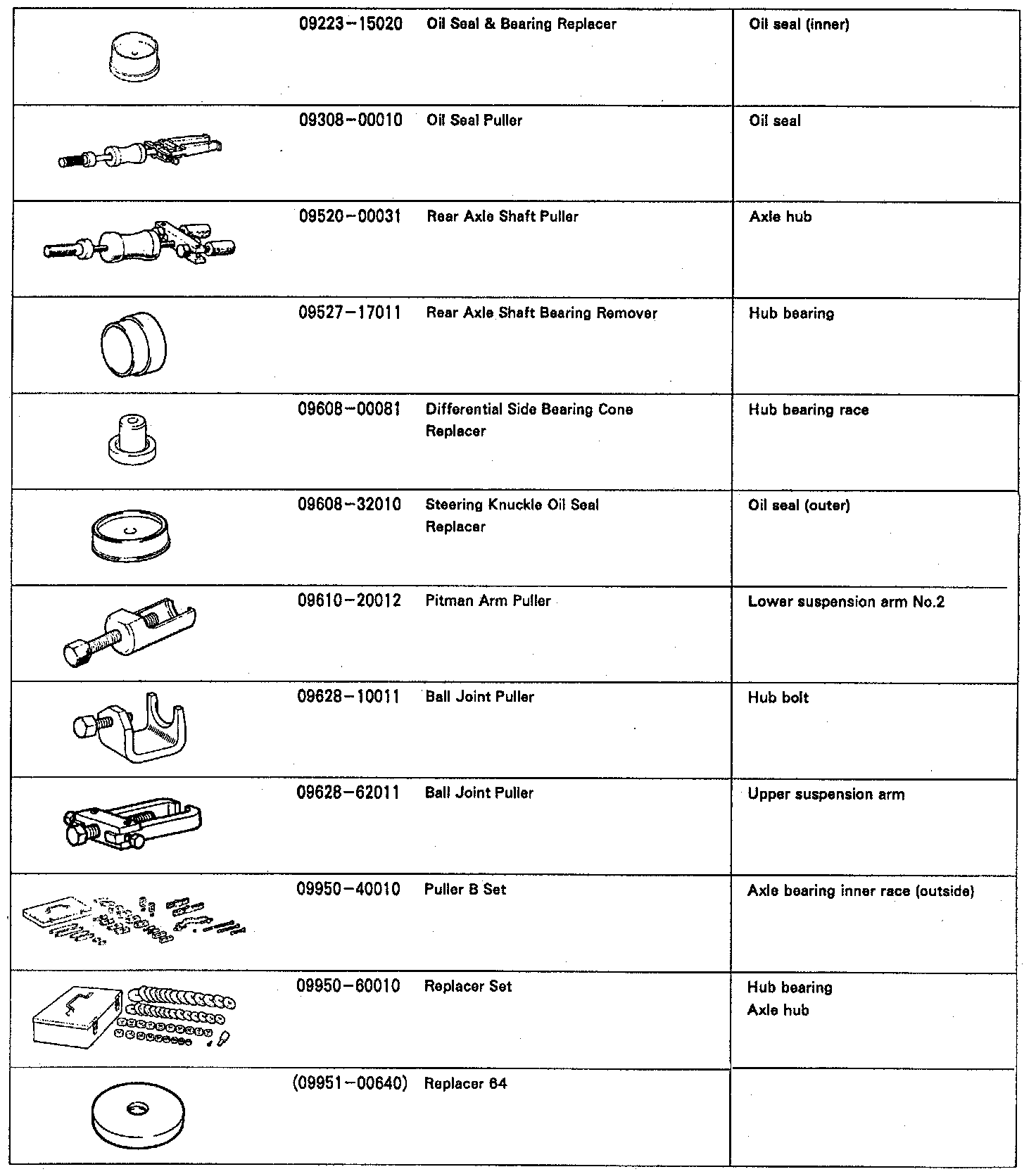

Rear Axle / Special Tools (1 Of 2):

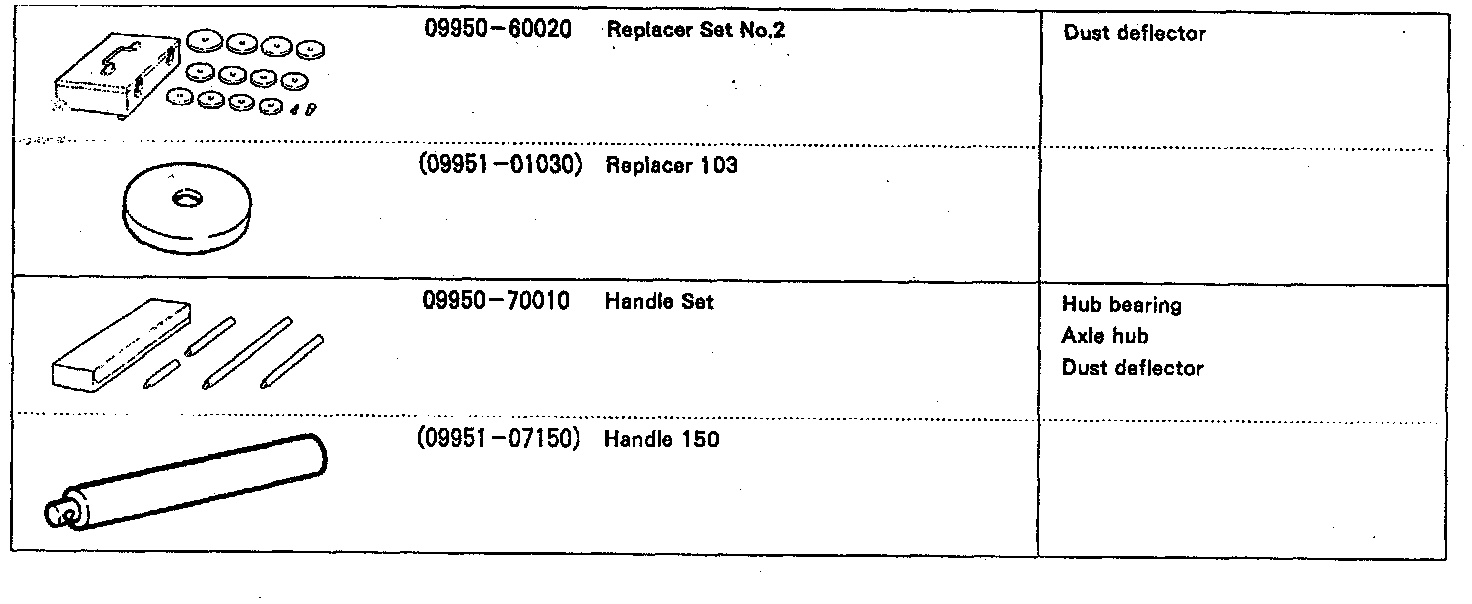

Rear Axle / Special Tools (2 Of 2):
