Hub Bolt

1. Remove rear wheel.
2. Remove rear brake caliper and disc.





3. Remove hub bolt. Using Special Service Tool (SST) 09628 - 10011 or equivalent, remove the hub bolt.
4. Install hub bolt, as follows:

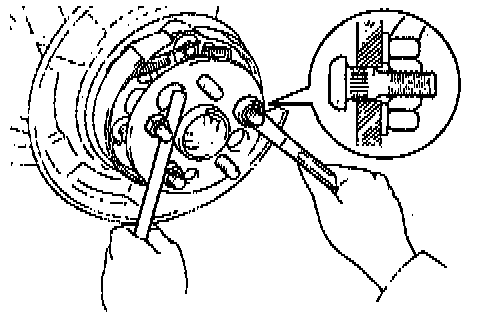

a. Install washer and nut to a new hub bolt, as shown in the illustration.
b. Turn the wheel nut to pull the hub bolt through until the underside of the hub bolt head touches the axle hub.

5. Install disc and brake caliper.
6. Install rear wheel.

Torque: 103 Nm (76 ft. lbs.).
