Supra L6-183 2997cc 3.0L DOHC Turbo (2JZ-GTE)
>>
Repair and Diagnosis
>>
Transmission and Drivetrain
>>
Differential Assembly
>>
Tools and Equipment
>>
Special Service Tools
Special Service Tools

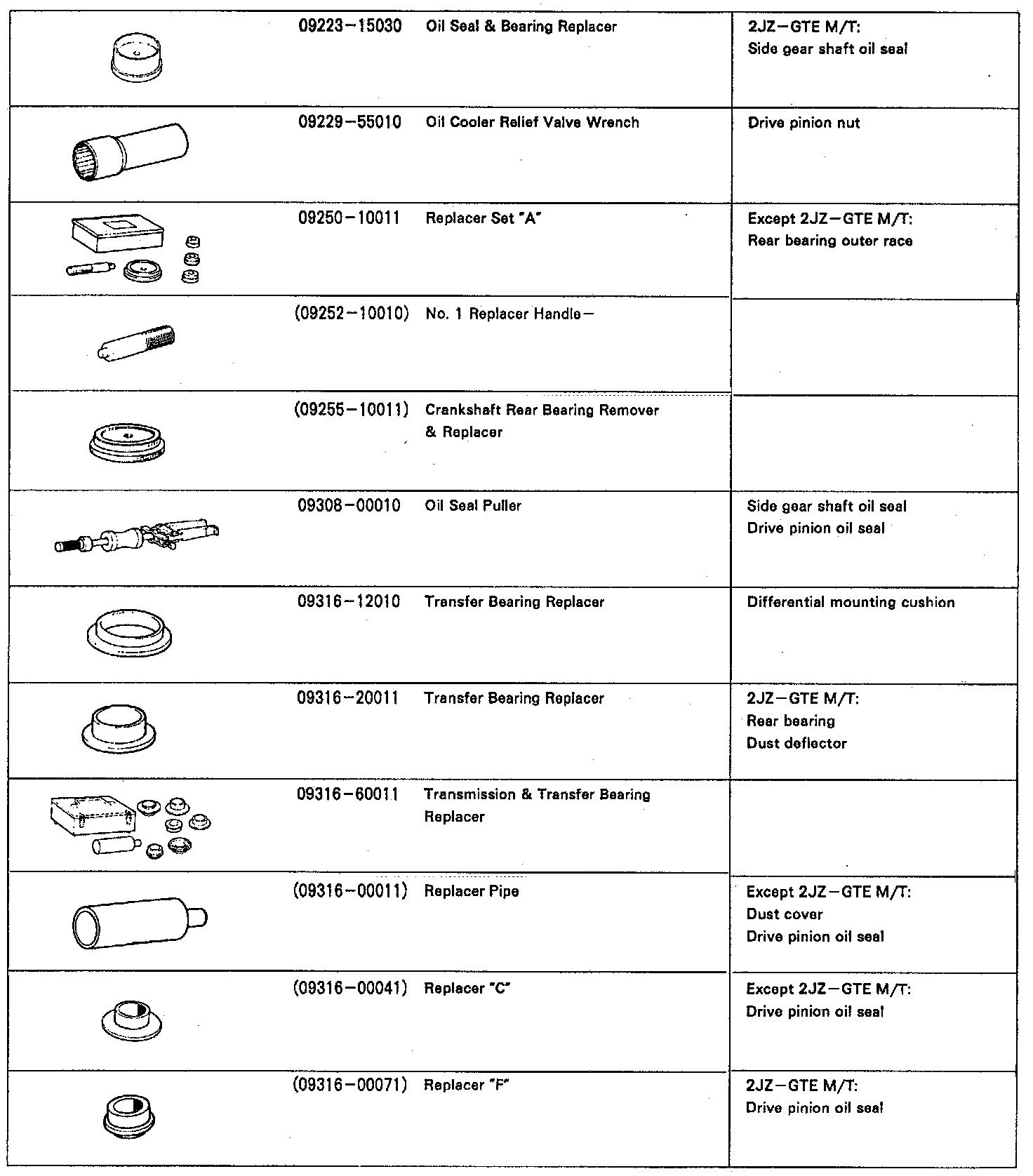

Rear Differential / Special Tools (1 Of 3):

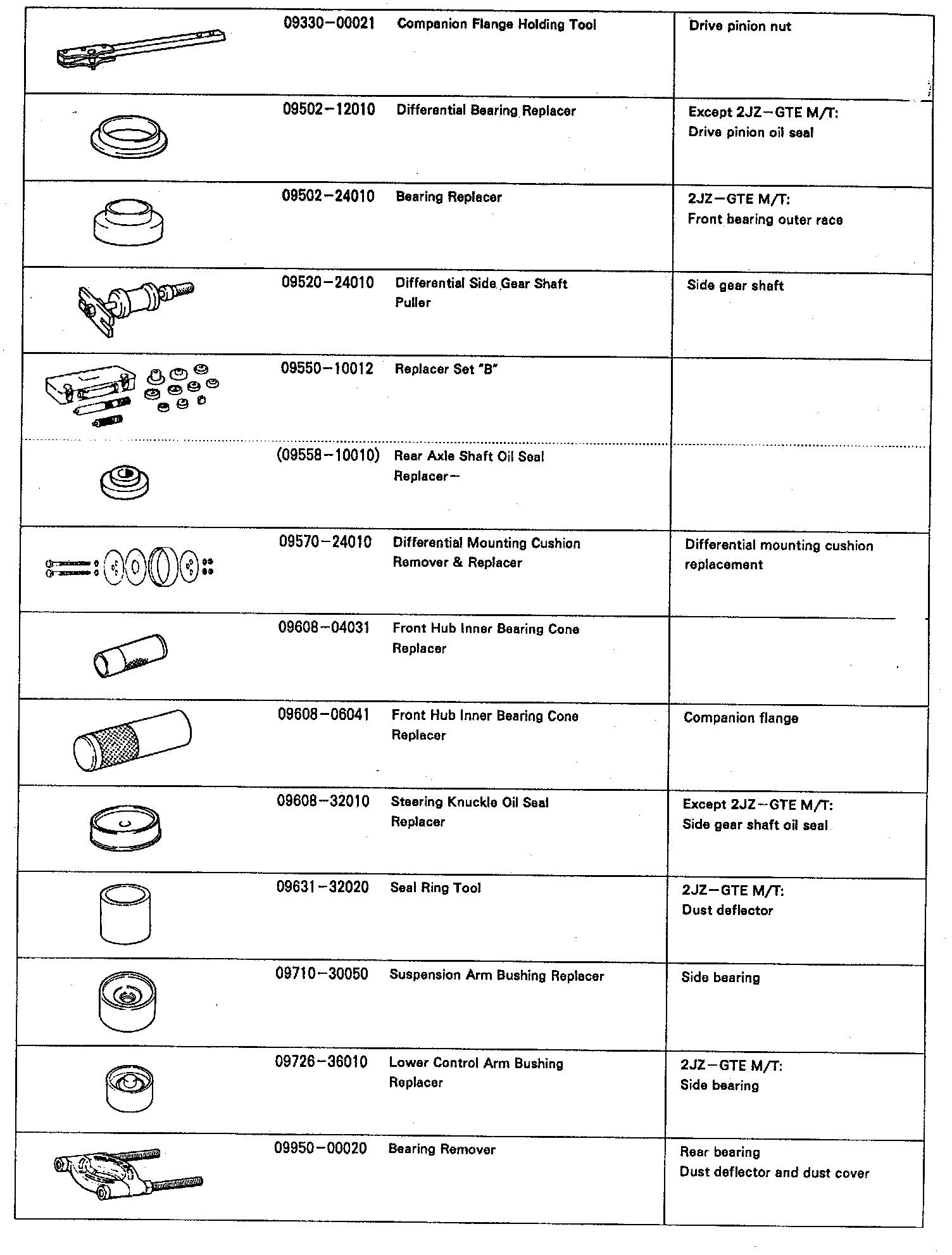

Rear Differential / Special Tools (2 Of 3):

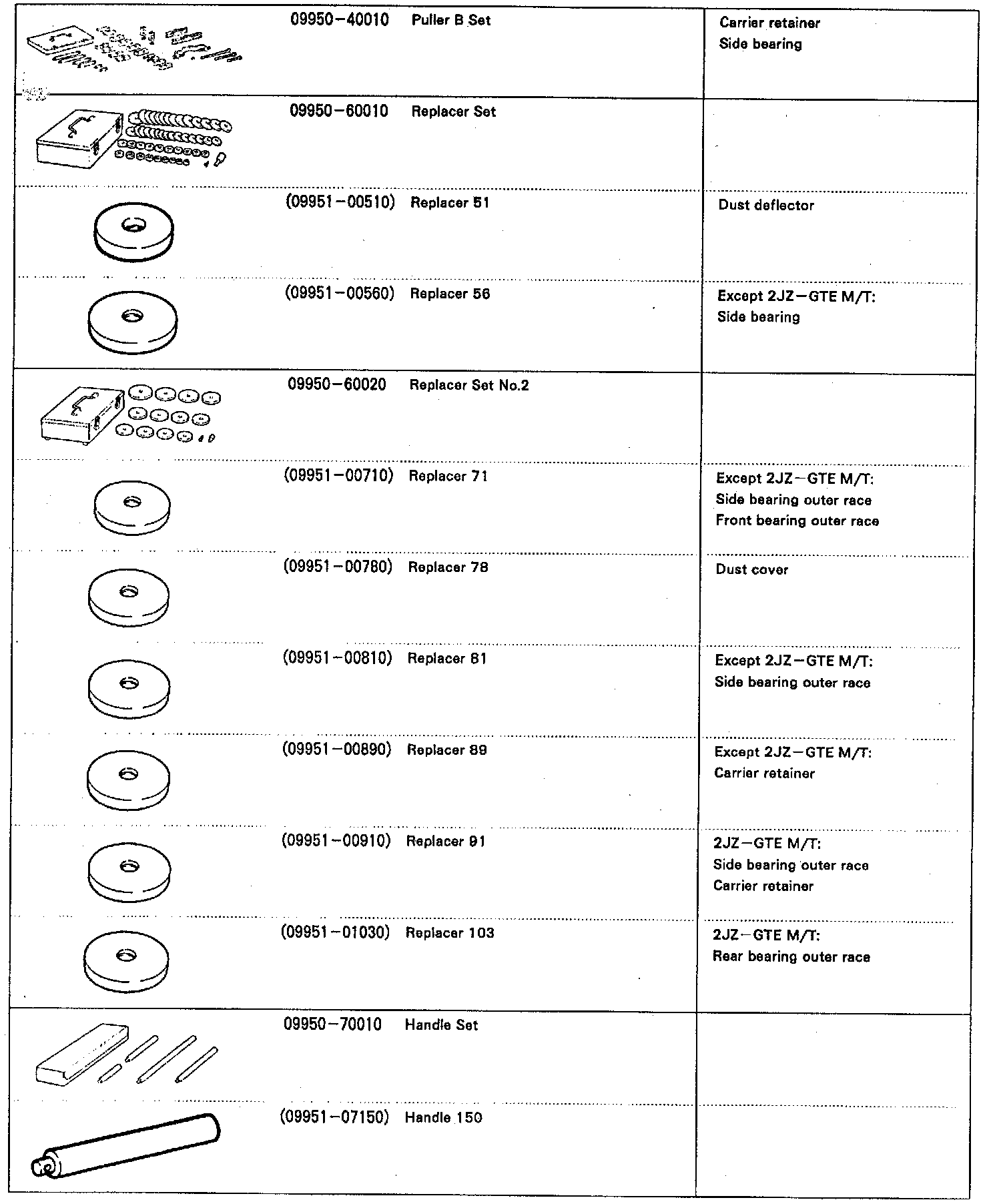

Rear Differential / Special Tools (3 Of 3):
