Rear Wheel Drive (RWD)

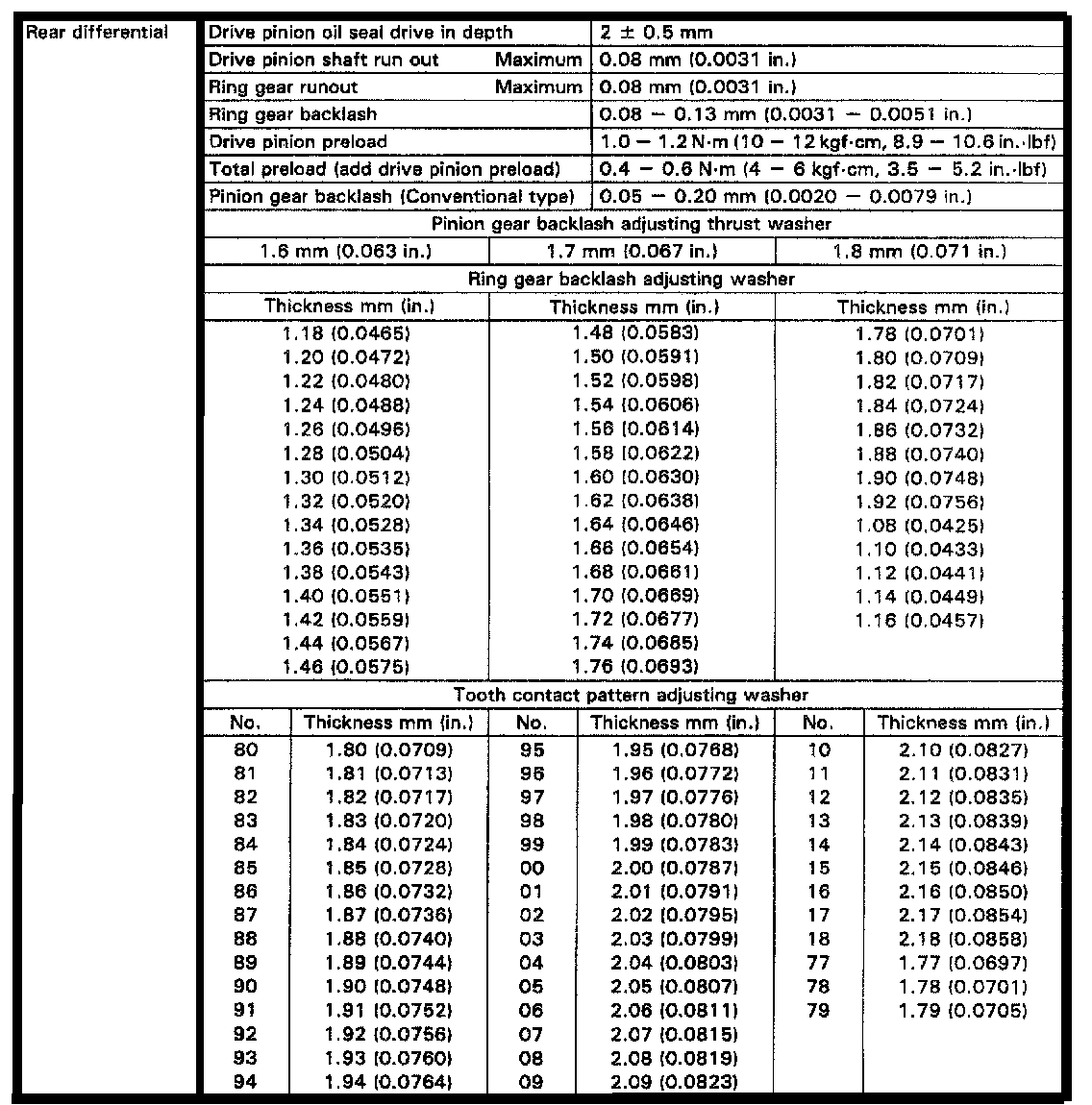

Rear Differential, Carrier (except 2JZ-GTE M/T):




Rear Differential, Carrier (2JZ-GTE M/T):
