Removal and Installation

Rear Differential:

REMOVAL
1. Drain differential oil.
2. Remove propeller shaft
3. Disconnect both rear drive shafts from differential, as follows:

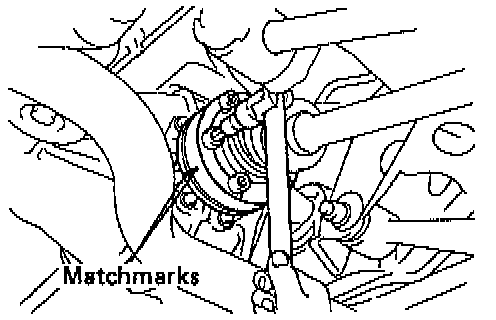

a. Place matchmarks on the drive shaft and side gear shaft.
b. Using a 10 mm hexagon wrench, disconnect both drive shafts from the differential.

Torque: 83 Nm (64 ft. lbs.).

INSTALLATION NOTE: Apply a light coat of engine oil on the threads of the bolts.

c. Support both drive shafts securely.

4. Remove rear stabilizer bar.
5. Remove differential, as follows:
a. Support the differential with a jack.

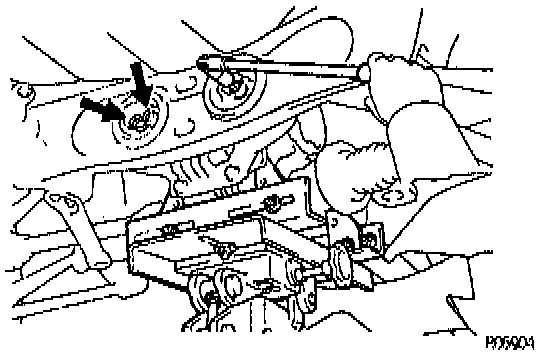

b. Using a 12 mm hexagon wrench, remove the bolts.

Torque: 142 Nm (105 ft. lbs.).

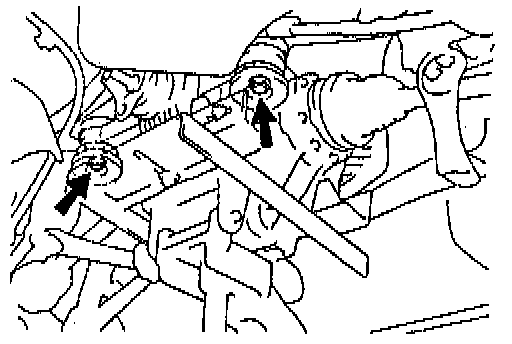

c. Remove the two bolts and lower mount stoppers.

Torque: 147 Nm (108 ft. lbs.).

d. Remove the differential.

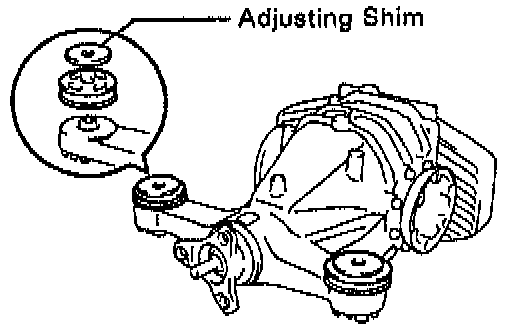

e. Remove the upper mount stopper from the differential carrier.





NOTE: During production, some vehicles did not need adjusting shims to be fitted.

INSTALLATION NOTE: Use the upper mount stopper which was removed.

INSTALLATION
Installation is in the reverse order of removal.

NOTE: After installation, fill the differential with differential oil.
