Throttle Valve Cable/Linkage: Adjustments

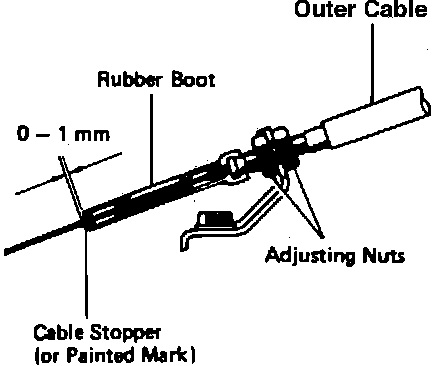

Fig. 2 Throttle Cable Adjustment:

1. Fully depress accelerator pedal, then ensure throttle valve is fully open.
2. With accelerator pedal fully depressed, loosen throttle valve adjustment nuts, Fig. 2.
3. Adjust cable housing until distance between end of boot and stopper on cable is 0-.04 inch.
4. Tighten adjusting nuts, then recheck adjustment.
