Supra L6-183 2997cc 3.0L DOHC Turbo (2JZ-GTE)
>>
Repair and Diagnosis
>>
Transmission and Drivetrain
>>
Automatic Transmission/Transaxle
>>
Service and Repair
>>
Removal and Installation
Removal and Installation

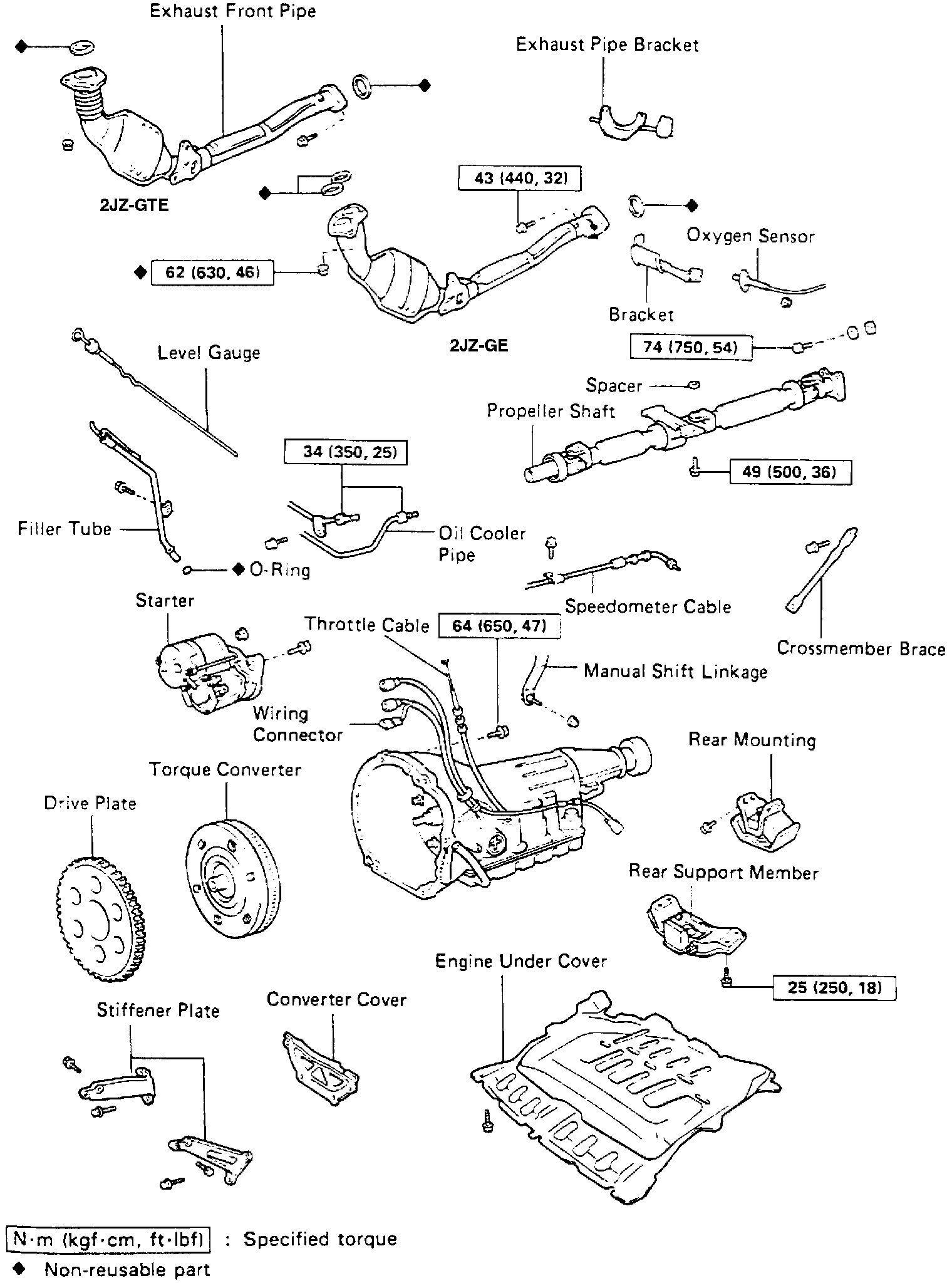

Fig. 49 Transmission Replacement.:
Refer to
Fig. 49,
for transmission replacement.
