Part 2

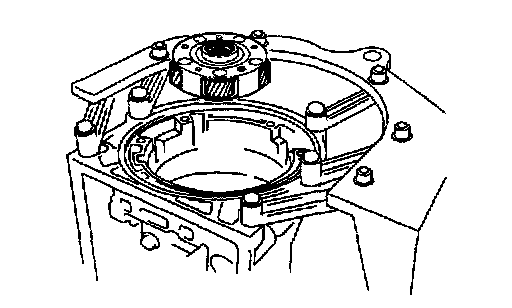

23. REMOVE OVERDRIVE PLANETARY GEAR WITH OVERDRIVE DIRECT CLUTCH





a) Remove the overdrive planetary gear with the overdrive direct clutch from the transmission case.

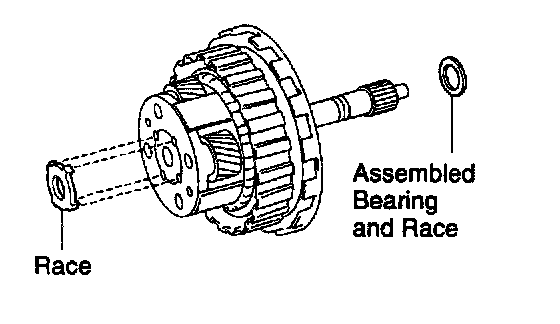

b) Remove the race and assembled bearing and race.

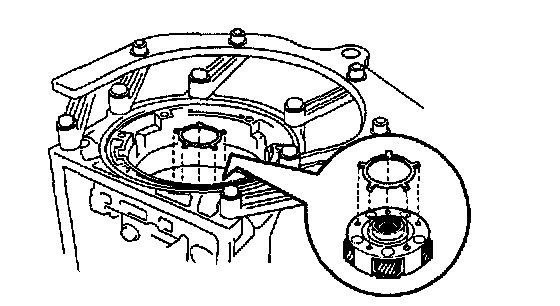

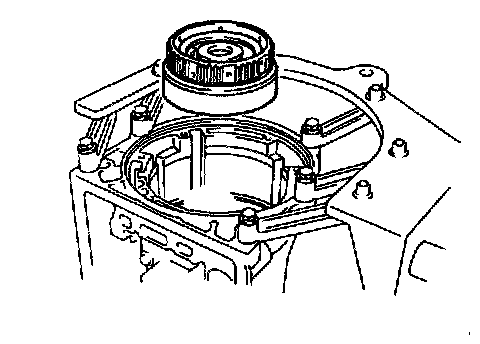

24. REMOVE OVERDRIVE PLANETARY RING GEAR





a) Remove the overdrive planetary ring gear from the transmission case.

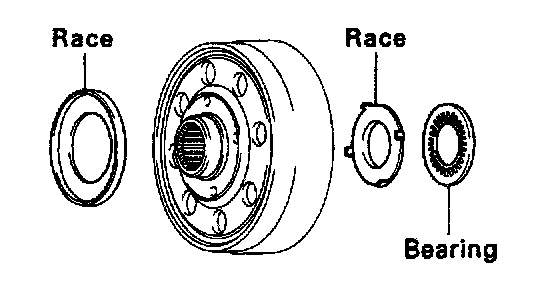

b) Remove the bearing and races from the planetary ring gear.

25. CHECK PISTON STROKE OF OVERDRIVE BRAKE

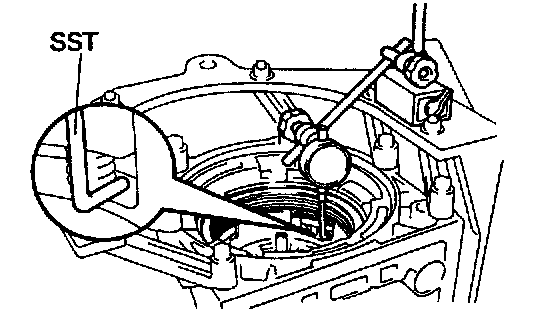

a) Place SST and dial indicator onto the overdrive brake piston.
SST 09350-30020 (09350-06120)





b) Measure the stroke while applying and releasing compressed air (392 - 785 kPa, 4 - 8 kg-cm2 or 57 - 114 psi).

Piston stroke: 1.75 - 2.05 mm (0.0689 - 0.0807 inch)

If the values are non-standard, inspect the discs.

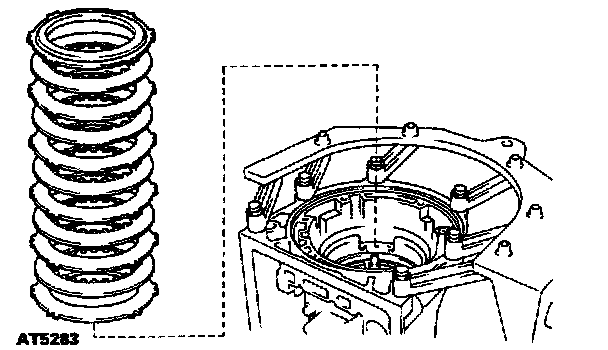

26. REMOVE FLANGES, PLATES AND DISCS OF OVERDRIVE BRAKE

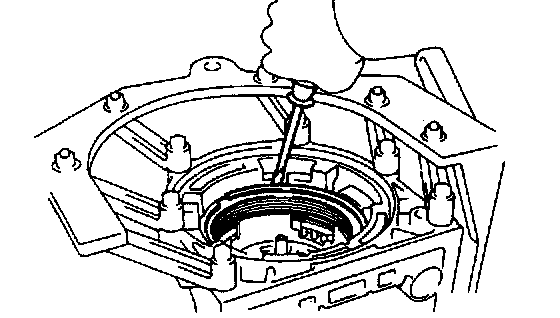

a) Remove the snap ring.

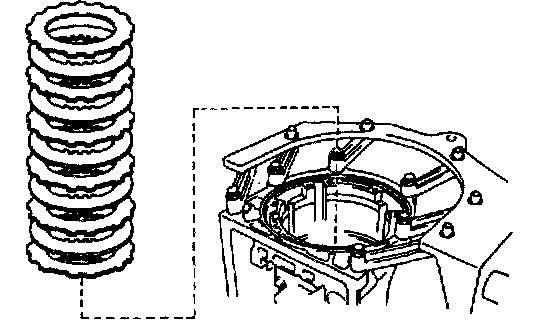

b) Remove the flange, 5 plates and 5 discs.

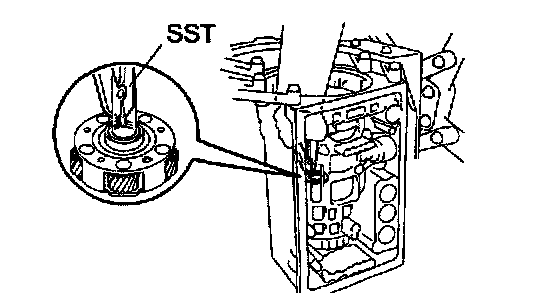

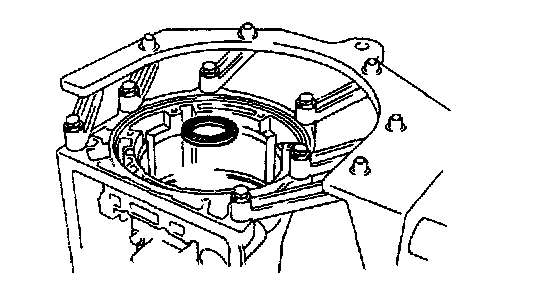

27. REMOVE OVERDRIVE SUPPORT ASSEMBLY





a) Remove the 2 bolts holding the overdrive support assembly to the case.

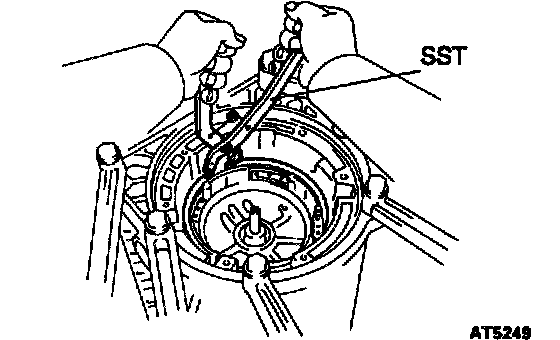

b) Using SST, remove the snap ring.
SST 09350-30020 (09350-07060)

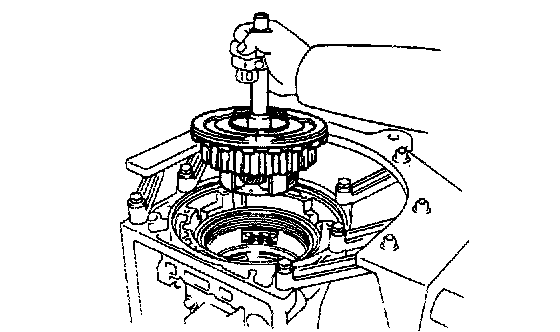

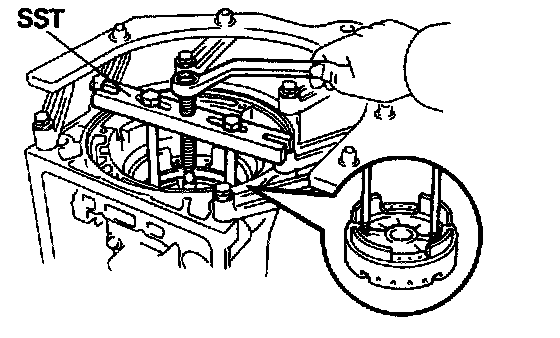

c) Using SST, remove the overdrive support assembly.
SST 09350-30020 (09350-07020)

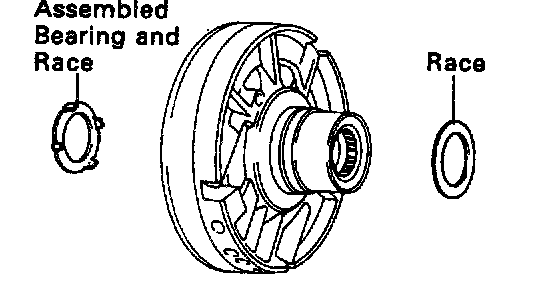

d) Remove the assembled bearing and races from the overdrive support.

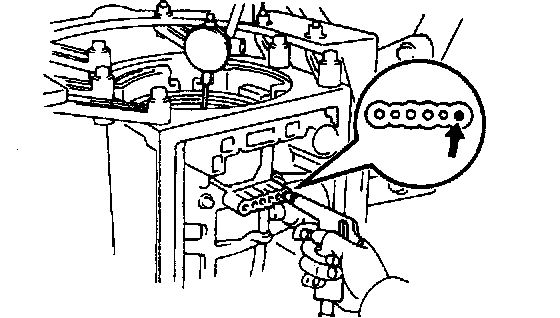

28. CHECK PISTON ROD STROKE OF SECOND COAST BRAKE

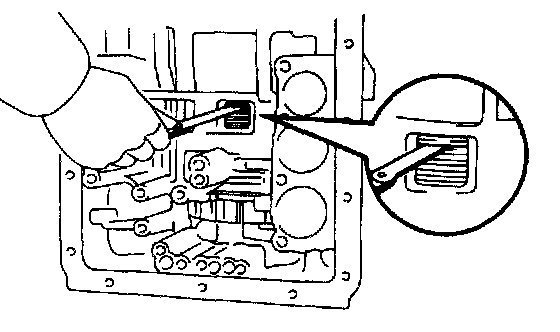

a) Using a waterproof pen, place a mark on the second coast brake piston rod.

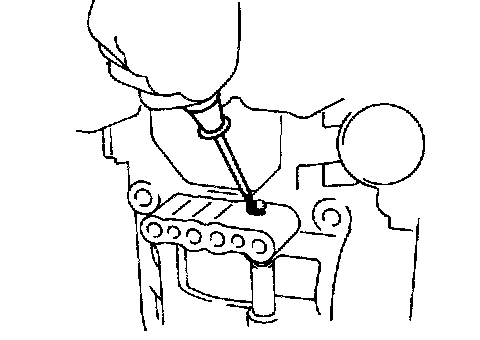

b) Using SST, measure the stroke while applying and releasing compressed air (392 - 784 kPa, 4 - 8 kg-cm2 or 57 - 114 psi).
SST 09240-00020

Piston rod stroke: 1.0 - 2.0 mm (0.039 - 0.079 inch)

If the values are non-standard, inspect the brake band.

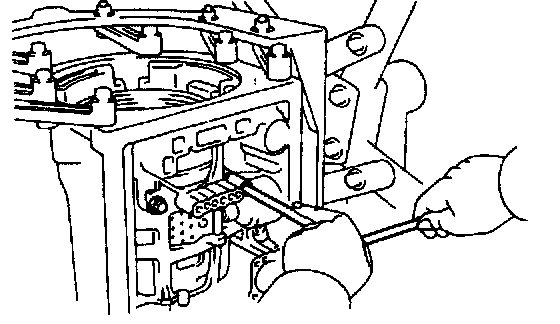

29. REMOVE SECOND COAST BRAKE COVER, PISTON ASSEMBLY AND SPRING

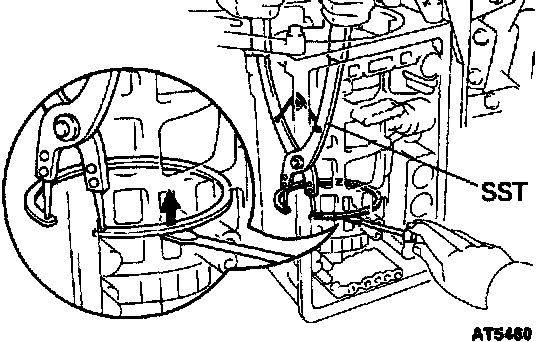

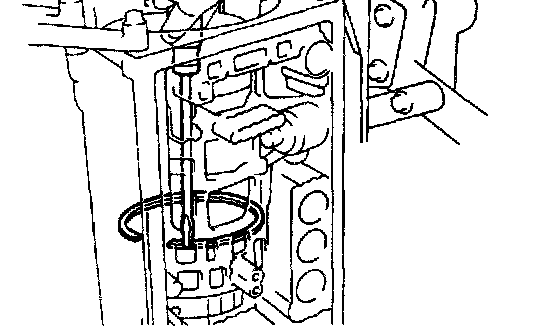

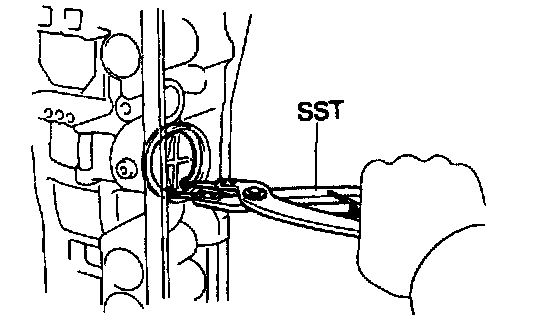

a) Using SST, remove the snap ring.
SST 09350-30020 (09350-07060)

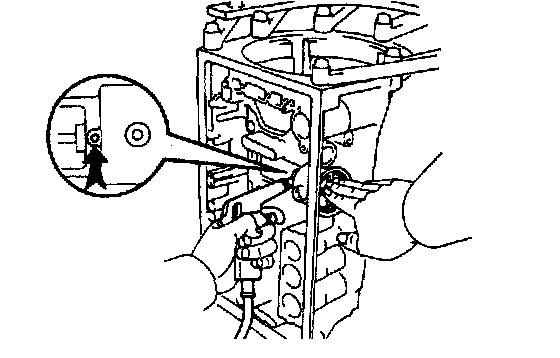

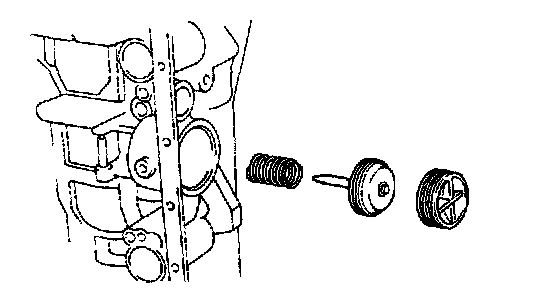

b) Applying compressed air to the oil hole, remove the second cost brake cover, piston assembly and spring.





c) Remove the 2 0-rings from the cover.

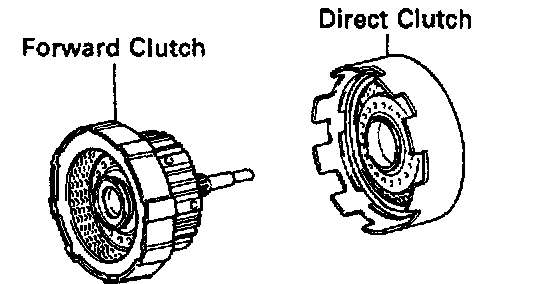

30. REMOVE DIRECT CLUTCH WITH FORWARD CLUTCH

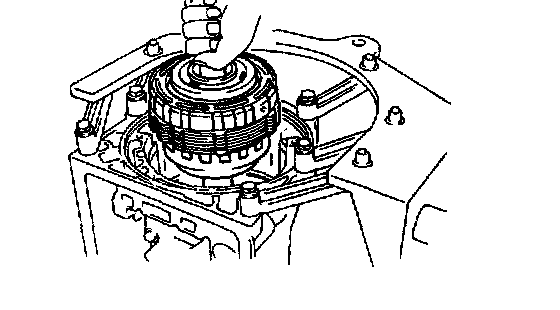

a) Remove the direct clutch with forward clutch from the case.





b) Remove the direct clutch from the forward clutch.

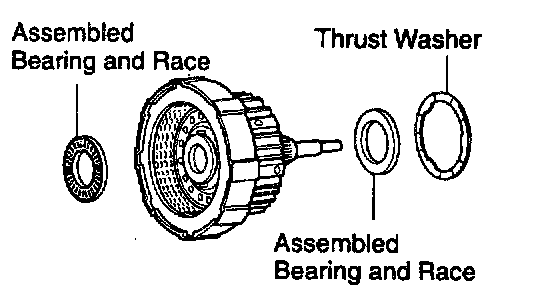

c) Remove the assembled bearing and race, thrust washer and race from the forward clutch.

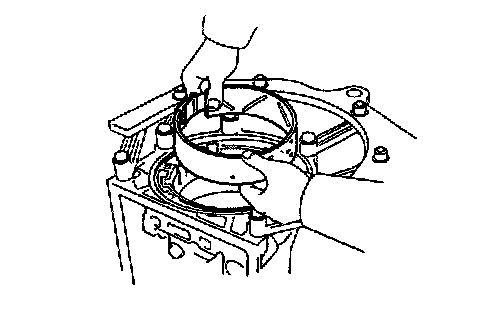

31. REMOVE SECOND COAST BRAKE BAND
a) Remove the E-ring from the pin.

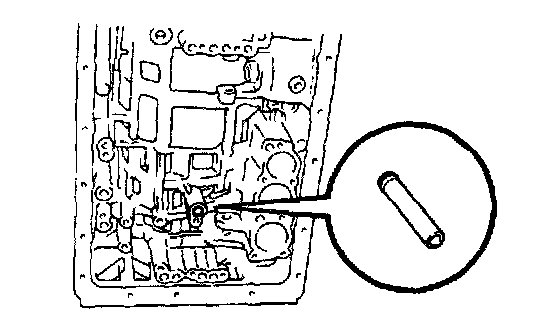

b) Remove the pin from the brake band.





c) Remove the second coast brake band from the case.

32. REMOVE FRONT PLANETARY RING GEAR





a) Remove the front planetary ring gear from the case.

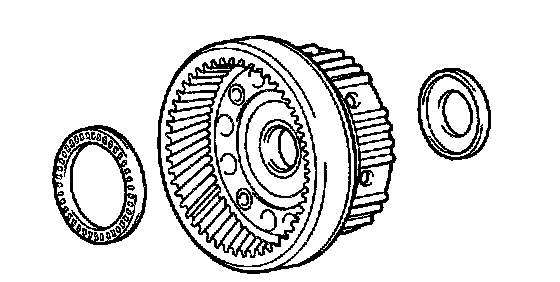

b) Remove the bearing and race from the front planetary ring gear.





c) Remove the race from the front planetary gear.

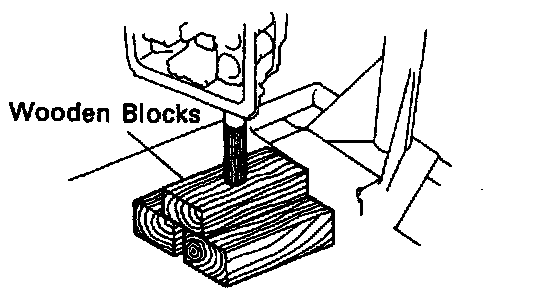

d) With wooden blocks under the output shaft, stand the transmission on the output shaft.

33. REMOVE OUTPUT SHAFT

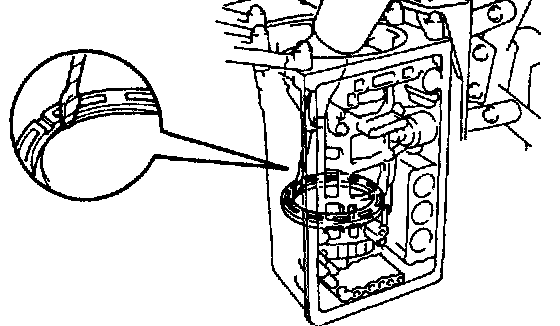

a) Using SST, remove the snap ring.
SST 09350-30020 (09350-07070)

HINT: Pushing the output shaft towards the front makes it easier to remove.

b) Remove the output shaft from the case.

34. REMOVE FRONT PLANETARY GEAR





a) Remove the front planetary gear from the case.

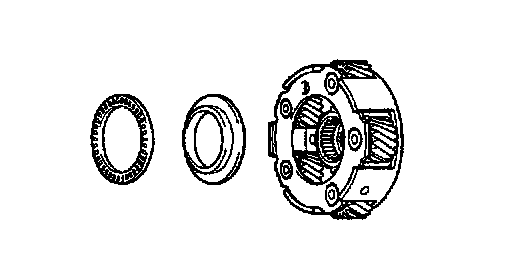

b) Remove the bearing and race from the front planetary gear.

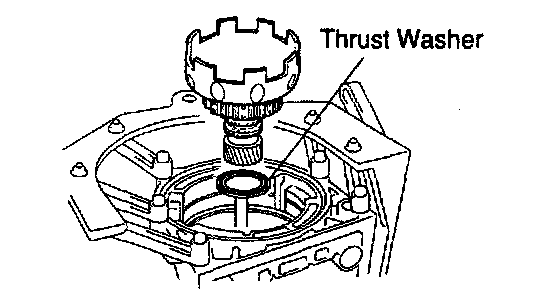

35. REMOVE PLANETARY SUN GEAR WITH NO.1 ONE -WAY CLUTCH
a) Remove the planetary sun gear with No.1 one-way clutch from the case.





b) Remove the thrust washer.





36. CHECK PACK CLEARANCE OF SECOND BRAKE
Using a feeler gauge, measure the clearance between the snap ring and flange.

Clearance: 0.49 - 1.11 mm (0.0193 - 0.0437 inch)

If the values are non-standard, inspect the discs.

37. REMOVE FLANGE, PLATES AND DISCS OF SECOND BRAKE





a) Remove the snap ring.





b) Remove the flange, 5 plates and 5 discs as a set.





38. CHECK PACK CLEARANCE OF FIRST AND REVERSE BRAKE
Using a feeler gauge, measure the clearance between the plate and second brake drum.

Clearance: 0.7 - 1.0 mm (0.028 - 0.039 inch)

If the values are non-standard, inspect the discs.





39. REMOVE SECOND BRAKE PISTON SLEEVE
40. REMOVE REAR PLANETARY GEAR AND SECOND BRAKE





a) Using SST and a screwdriver, remove the snap ring.
SST 09350-30020 (09350-07060)





b) Remove the output shaft.
c) Remove the rear planetary gear, second brake and first and reverse brake pack from the case.





d) Remove the assembled bearing and race from the first and reverse brake.

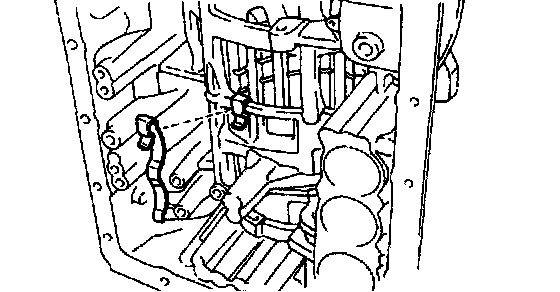

e) Remove the leaf spring from the case.





41. REMOVE BRAKE DRUM GASKET COMPONENT PARTS
