Transmission Case and Extension Housing

TRANSMISSION CASE
Transmission Case Inspection



INSPECT TRANSMISSION CASE BUSHING]

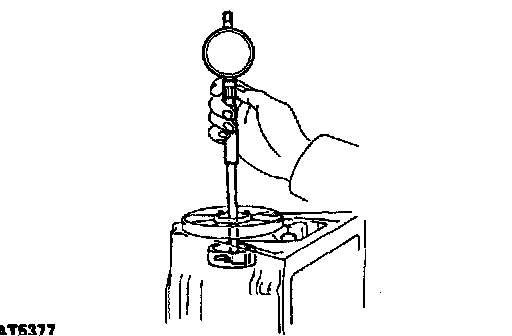

Using a cylinder gauge, measure the inside diameter of the transmission case rear bushing.

Maximum inside diameter: 38.18 mm (1.5031 inch)

If the inside diameter is greater than the maximum, replace the transmission case.


EXTENSION HOUSING
Extension Housing Disassembly





1. REMOVE OIL SEAL FROM EXTENSION HOUSING

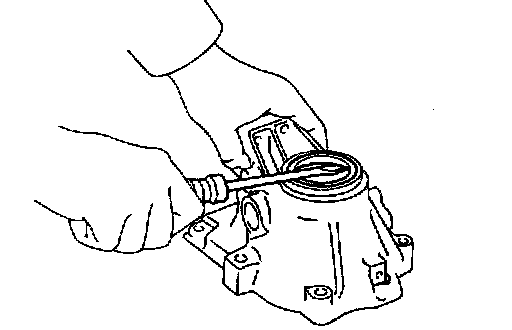

Using a screwdriver, remove the oil seal.

2. REMOVE EXTENSION HOUSING BEARING

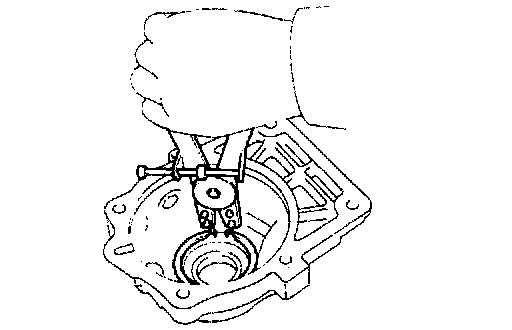

a) Using a snap ring expander, remove the snap ring.

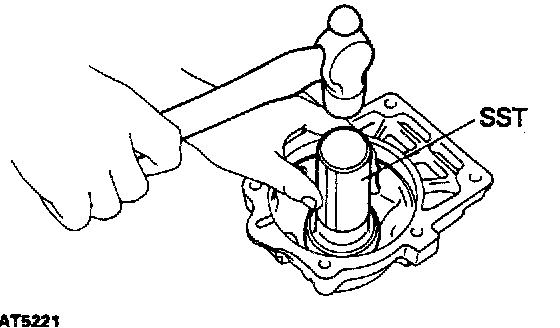

b) Using SST, drive out the bearing.
SST 09325-12010

Extension Housing Assembly
1. INSTALL EXTENSION HOUSING BEARING

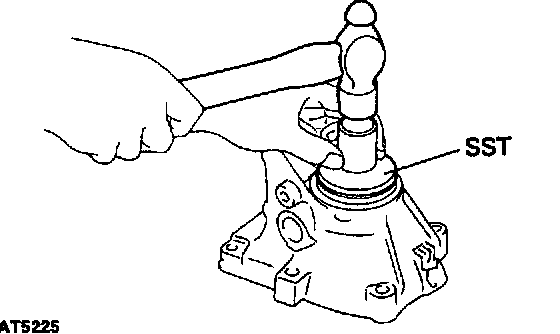

a) Using SST, drive in the bearing.
SST 09350-30020 (09350-32140)

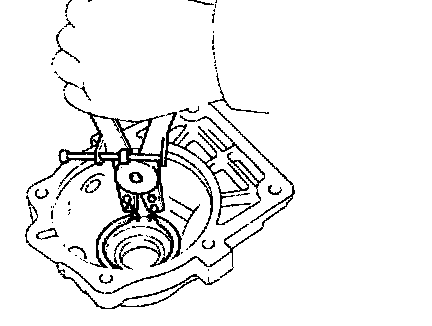

b) Using a snap ring expander, install the snap ring.





2. INSTALL OIL SEAL TO EXTENSION HOUSING

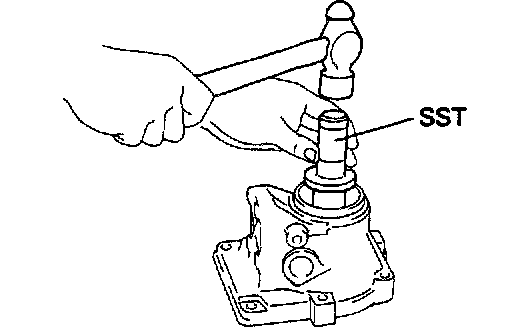

Using SST, install a new oil seal.
SST 09325-40010
