Description

DESCRIPTION





General Description
The A340E automatic transmission is a 4-Speed Electronically Controlled Transmission with an intelligent control. The A340E automatic transmission have the following features.
- When shifting, the clutch hydraulic pressure in the transmission is controlled by the ECM to reduce transmission shift shock to reduce transmission shift shock.
- A new type of Automatic Transmission Fluid (ATF) (ATF Type T - II) is used which provides improved shifting characteristics and prevents deterioration in the ATF over time.


HINT: The A340E automatic transmission use ATF Type T - II or equivalent.

A super flow torque converter clutch is used to improve transmission efficiency.

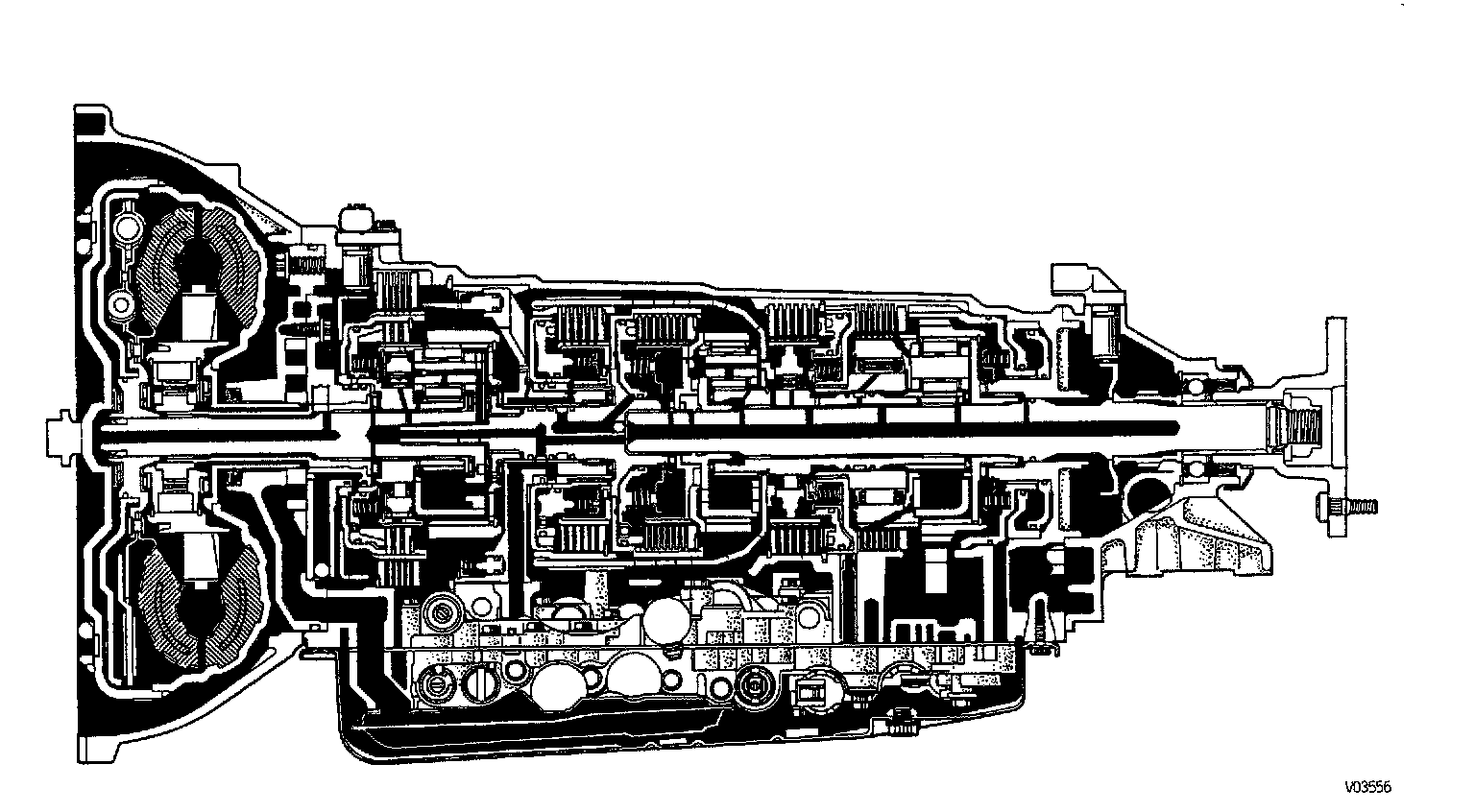

The A340E automatic transmission is mainly composed of a torque converter clutch with lockup clutch, a 4-speed planetary gear unit, a hydraulic control system and an electronic control system.
To minimize the possibility of incorrect operation of the automatic transmission, a shift lock mechanism has also been added.

Transmission Specifications
