Rear

Rear Suspension / Stabilizer Bar:

REMOVAL
1. Disconnect exhaust pipe supports.
2. Remove both stabilizer bar links. Remove the four nuts and two stabilizer bar links.

Torque: 74 Nm (54 ft. lbs.).

3. Remove both stabilizer bar brackets. Remove the four bolts and both stabilizer bar brackets from the subframe.

Torque: 31 Nm (23 ft. lbs.).





4. Remove both cushions and brackets. Remove the cushions and brackets from the stabilizer bar.

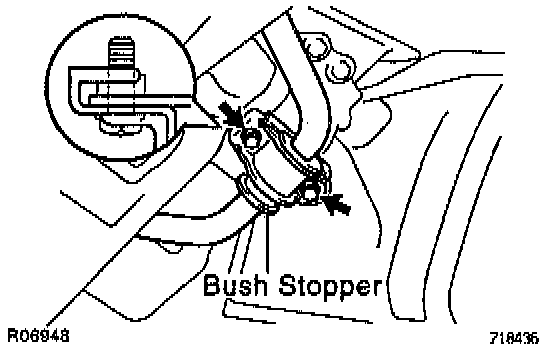

INSTALLATION NOTE: Install the cushion to the outside of the bush stopper.

INSTALLATION
Installation is in the reverse order of removal.
