Symptom Related Diagnostic Procedures

TROUBLE SYMPTOMS
- Hard steering at idle or low-speed driving.
- Steering too sensitive during high-speed driving.

PRELIMINARY CHECKS
- Check tire pressure.
- Check lubrication of suspension and steering linkage.
- Check front wheel alignment.
- Check steering system joint and suspension arm ball joint.
- Check for bent steering column.
- Check that all connectors are secure.
- Check the power steering pump fluid pressure.

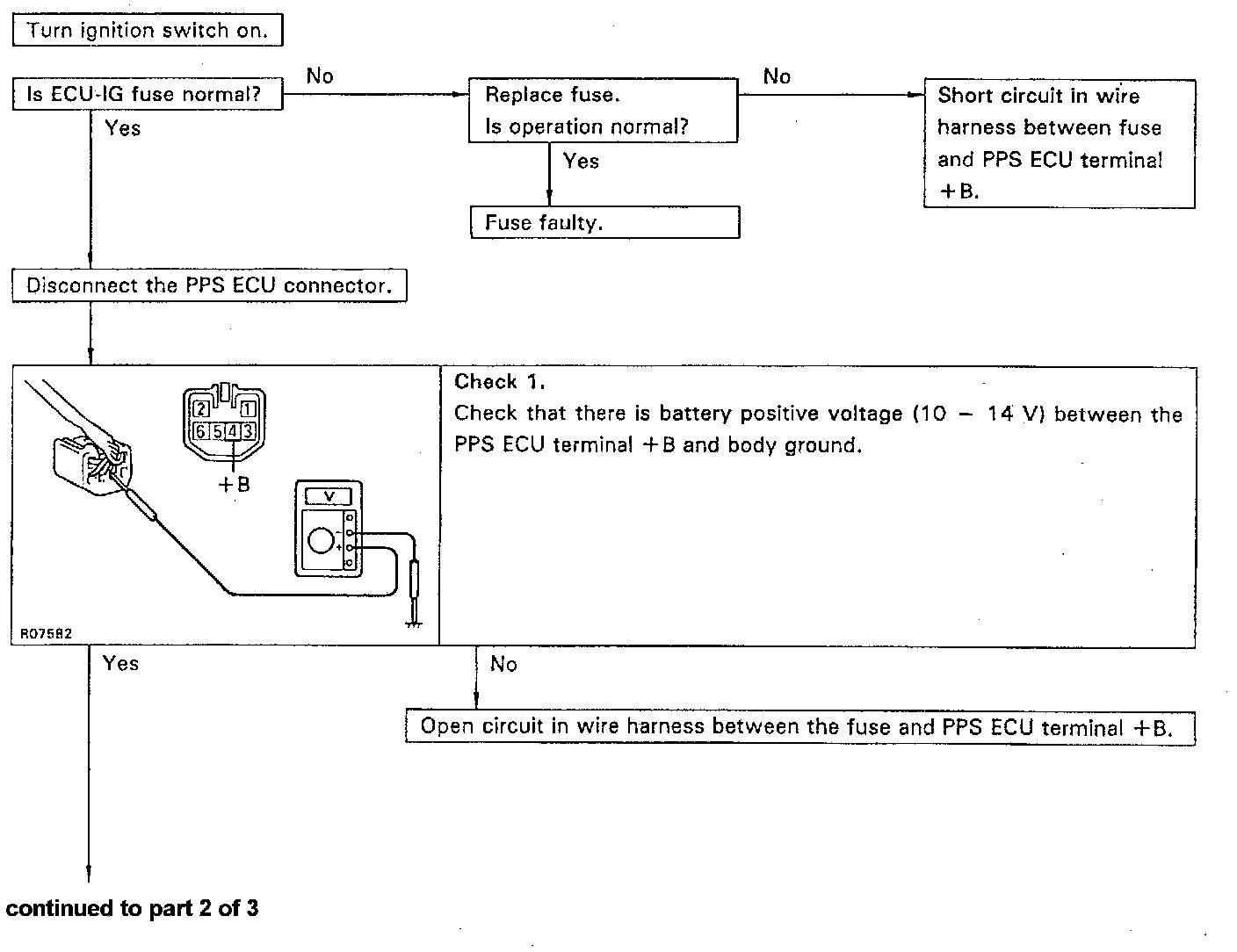

Electronic Control System (Part 1 Of 3):

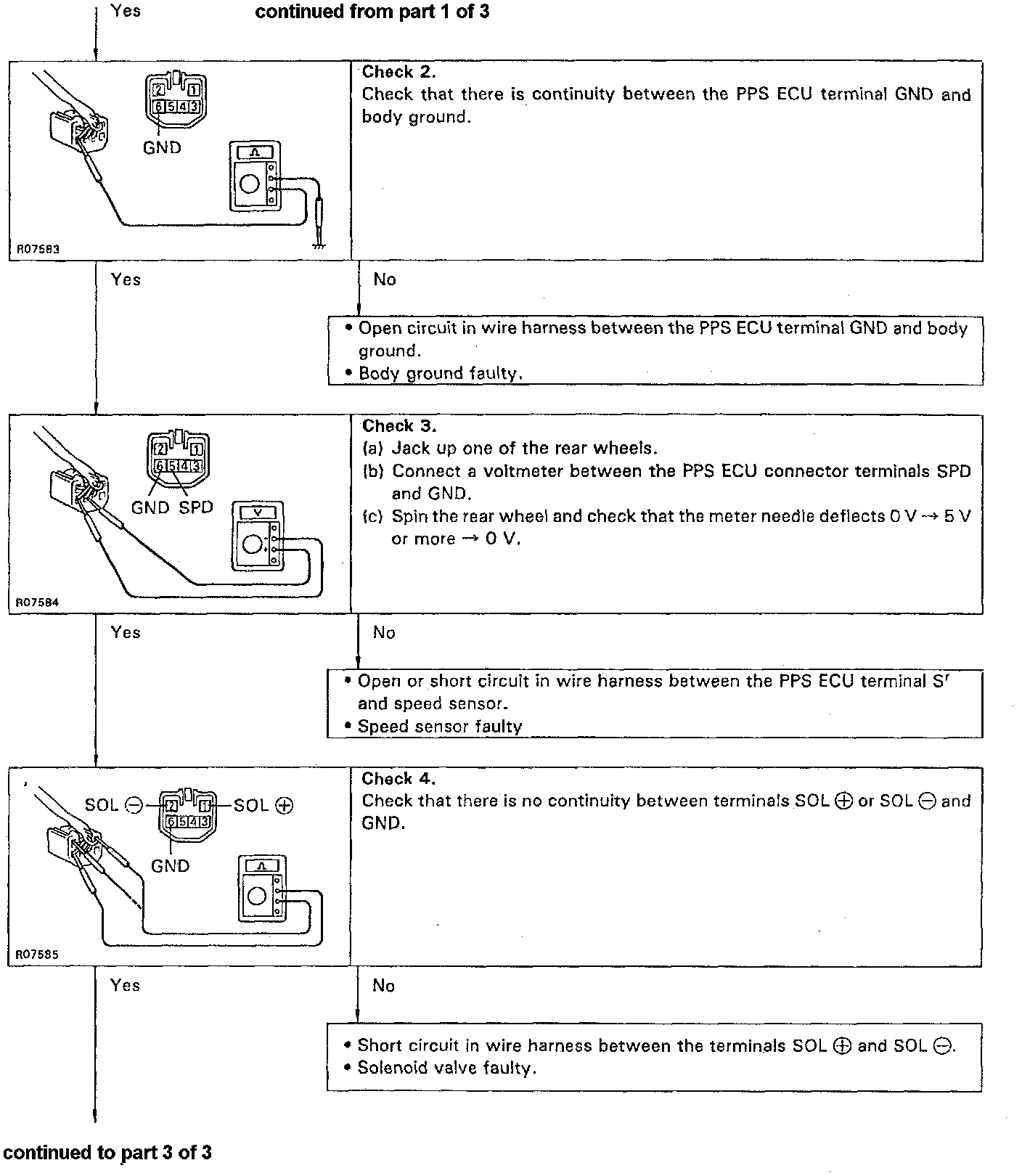

Electronic Control System (Part 2 Of 3):

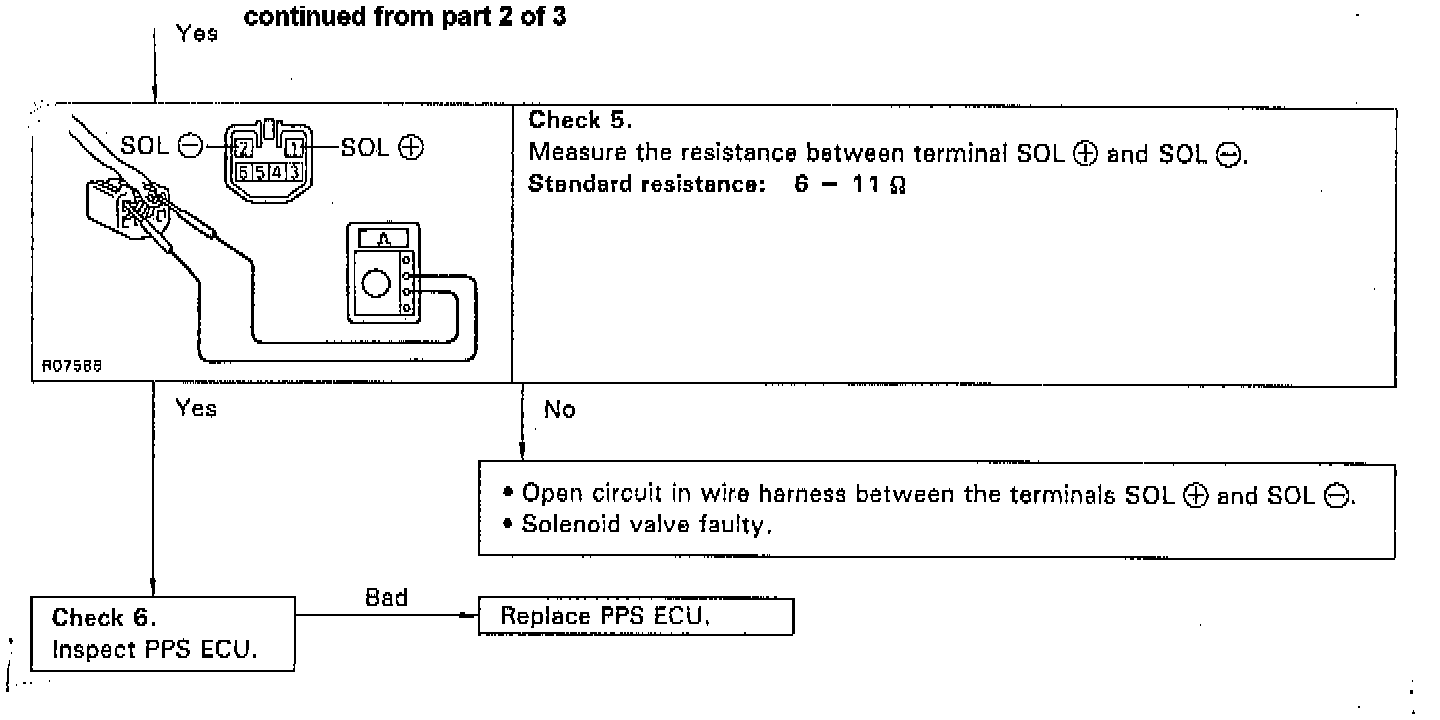

Electronic Control System (Part 3 Of 3):

TROUBLESHOOTING FLOW CHARTS
