Passengers Airbag Assembly

1. Disarm SRS as outlined under "Air Bag System Disarming and Arming."
2. Remove glove compartment door finish plate.
3. Disconnect passenger air bag electrical connector.
4. Remove glove compartment panel and heater to register duct No. 4, Fig. 45.

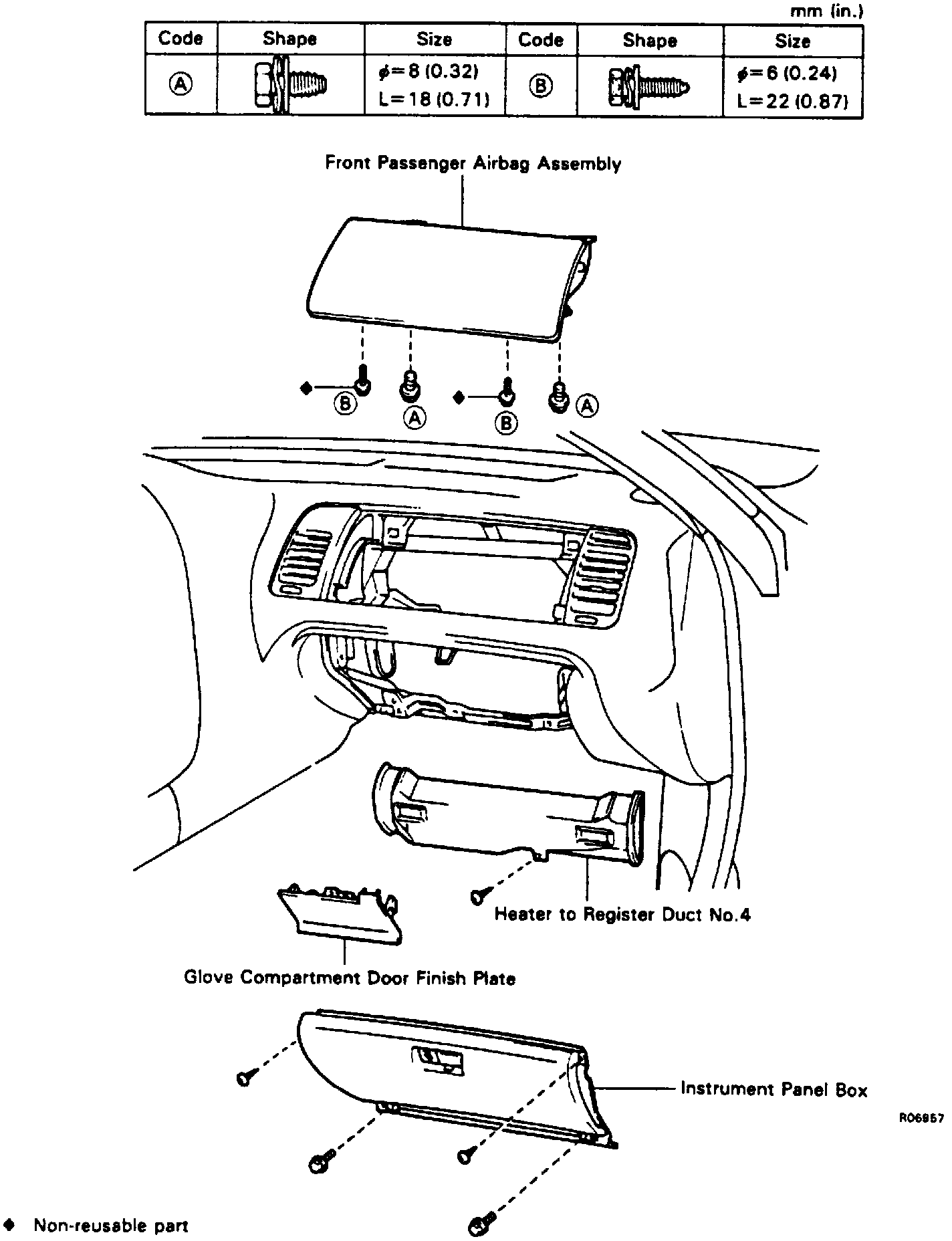

Fig. 45 Passenger Air Bag Replacement:

5. Remove passenger air bag mounting bolts.
6. Carefully remove passenger air bag module.
7. Reverse procedure to install and tighten bolts to specifications.
