Ignition Coil Pack: Service and Repair

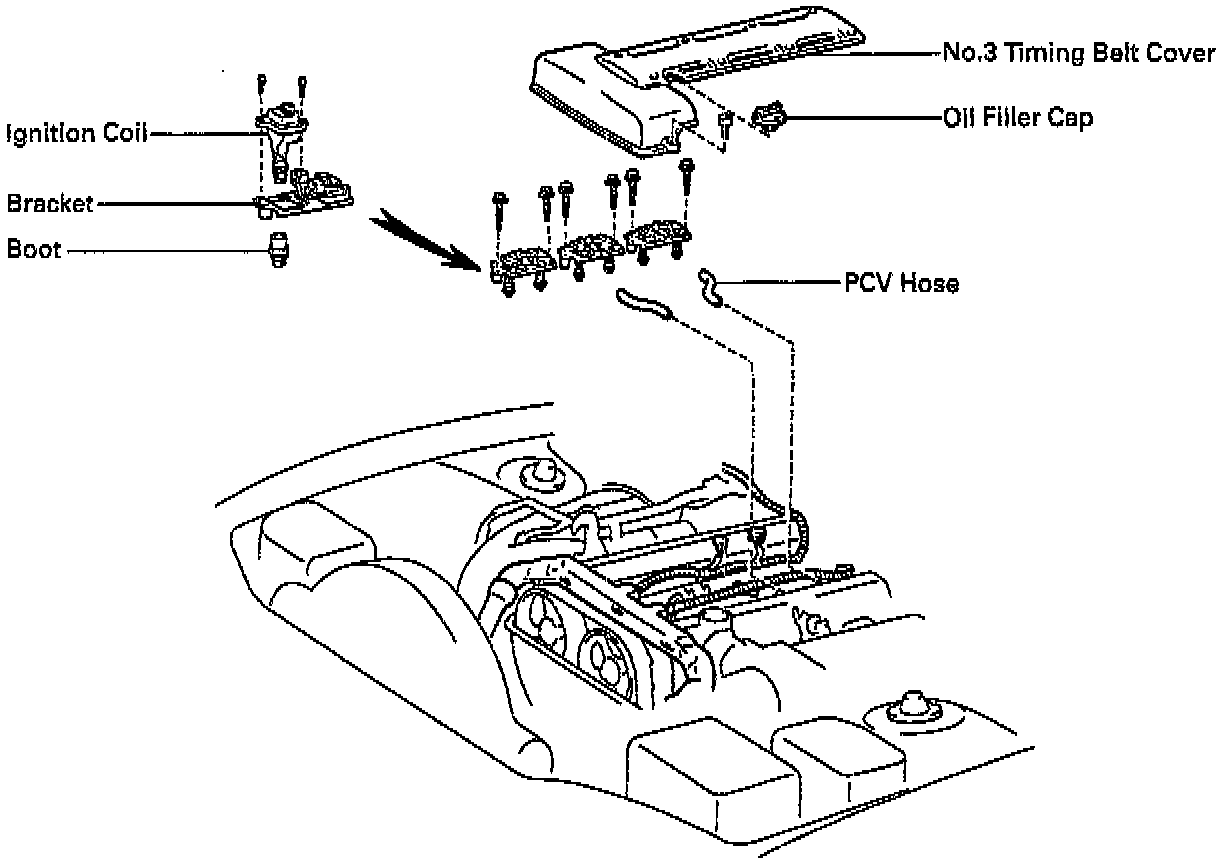

COMPONENTS FOR REMOVAL AND INSTALLATION

IGNITION COILS REMOVAL
1. REMOVE NO.3 TIMING BELT COVER
2. REMOVE PCV HOSES
3. DISCONNECT IGNITION COIL CONNECTORS

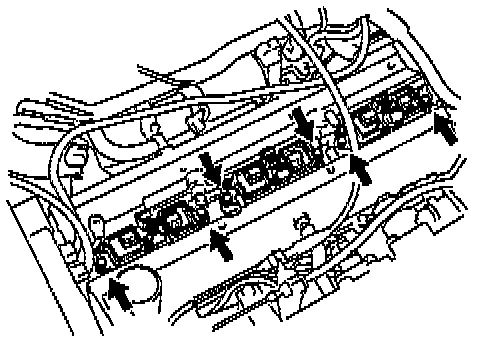

4. REMOVE BRACKET AND IGNITION COILS ASSEMBLIES
- Remove the 2 bolts and 2 ignition coils assembly.

Torque: 8.8 N.m (90 kgf.cm, 78 in.lbf)

5. REMOVE IGNITION COILS FROM BRACKET
- Remove the rubber boot from the ignition coil.





- Remove the 2 screws and ignition coil.

IGNITION COILS INSTALLATION

INSTALLATION HINT: Installation is in the reverse order of removal.
