Pressure Tank: Testing and Inspection

PRESSURE TANK INSPECTION





1. REMOVE PRESSURE TANK.

2. INSPECT PRESSURE TANK.

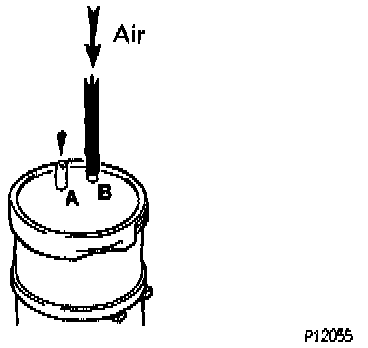

(a) Check that air flows from port A to B.



(b) Check that air does not flow from ports B to A.



(c) Apply 60.0 kPa (450 mmHg, 17.72 in.Hg) of vacuum to port A, and check that there is no change in vacuum after 1 minute.
^ If operation is not as specified, replace the pressure tank.

3. REINSTALL PRESSURE TANK.
