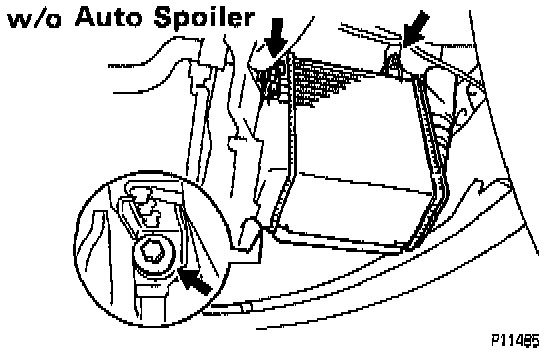

Without Auto Spoiler

CHARGE AIR COOLER (CAC) REMOVAL PROCEDURES




1. DISCONNECT NEGATIVE TERMINAL CABLE FROM BATTERY.

CAUTION: Work must not be started for at least 90 seconds from the time the ignition switch is turned to the LOCK position and the negative (-) terminal cable is disconnected from the battery.

2. REMOVE NO.1 AIR HOSE.



- Loosen the 2 hose clamps, and remove the air hose.

3. REMOVE ENGINE UNDER COVER.
4. REMOVE NO.2 ENGINE UNDER COVER.
5. DISCONNECT AIR HOSE FROM CAC.
(a) Remove the 2 bolts holding the No.2 air tube to the body.
(b) Disconnect the following hoses:
(Refer to image for (#) references.)



- No.2 air hose (1) from CAC
- No.4 air hose (2) from No. 2 air tube
- No.3 air hose (3) from CAC
(c) Remove the No.2 air tube (4).

6. REMOVE CAC AND CAC DUCT ASSEMBLY.



- Remove the nut, 2 bolts and CAC.

7. REMOVE CAC DUCT FROM CAC



- Remove the 4 bolts and CAC duct.


CHARGE AIR COOLER (CAC) INSTALLATION PROCEDURES

1. INSTALL CAC DUCT TO CAC.



- Install the CAC duct with the 4 bolts.

Torque: 4.9 Nm (43 in.lb)

2. INSTALL THE CAC AND DUCT ASSEMBLY.



- Install the CAC with the nut and 2 bolts.

Torque: 13 Nm (10 ft.lb)

3. CONNECT AIR HOSE TO CAC.
(a) Connect the following hoses:
(Refer to image for (#) references.)



- No.2 air hose (1) to CAC
- No.4 air hose (2) to No. 2 air tube
- No.3 air hose (3) to CAC
(b) Install the No. 2 air tube (4) to the body with the 2 bolts.

4. INSTALL NO. 2 ENGINE UNDER COVER.
5. INSTALL ENGINE UNDER COVER.
6. INSTALL NO. 1 AIR HOSE.



- Install the air hose with the 2 hose clamps.

7. CONNECT NEGATIVE TERMINAL CABLE TO BATTERY.
