Intake Air Control Valve Vacuum Solenoid: Testing and Inspection

VSV FOR INTAKE AIR CONTROL VALVE INSPECTION

1. REMOVE VSV
2. INSPECT VSV

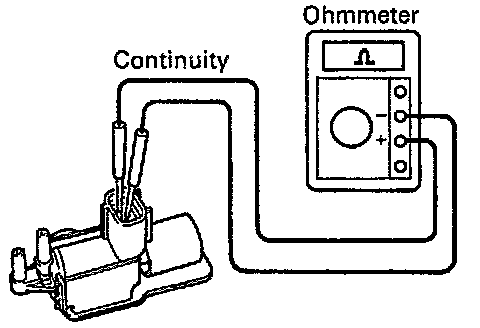

A. Inspect VSV for open circuit





- Using an ohmmeter, check that there is continuity between the terminals.

Resistance: At 20°C (68°F) 38.5 - 44.5 Ohms

- If there is no continuity, replace the VSV.

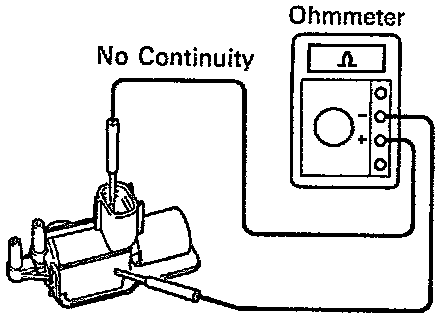

B. Inspect VSV for ground





- Using an ohmmeter, check that there is no continuity between each terminal and the body.
- If there is continuity, replace the VSV.
C. Inspect VSV operation





- Check that air flows from port E to filter.





- Apply battery positive voltage across the terminals.
- Check that air flows from port E to F.
- If operation is not as specified, replace the VSV.
3. REINSTALL VSV
